D-Link DGS-1008D Manual
Summary
Expand your local network efficiently with the D-Link DGS-1008D Gigabit Ethernet Switch. This reliable 8-port switch provides high-speed (10/100/1000Mbps) connectivity, making it ideal for small offices or homes building scalable networks. The accompanying manual is a comprehensive guide detailing essential networking technologies, including Ethernet standards, Quality of Service (QoS), VLAN setup, and fundamental protocols like TCP/IP. It empowers users of all skill levels to understand and correctly configure their network infrastructure for optimal performance.
Page 1 Text Content
D-Link™ DGS-1008D 8-Port 10/100/1000Mbps Gigabit Ethernet Switch
Manual
Building Networks for People
RECYCLABLE
(Aug. 2007)
Ver. 4.00
Page Summary Contents For D-Link DGS-1008D Manual
Page 1

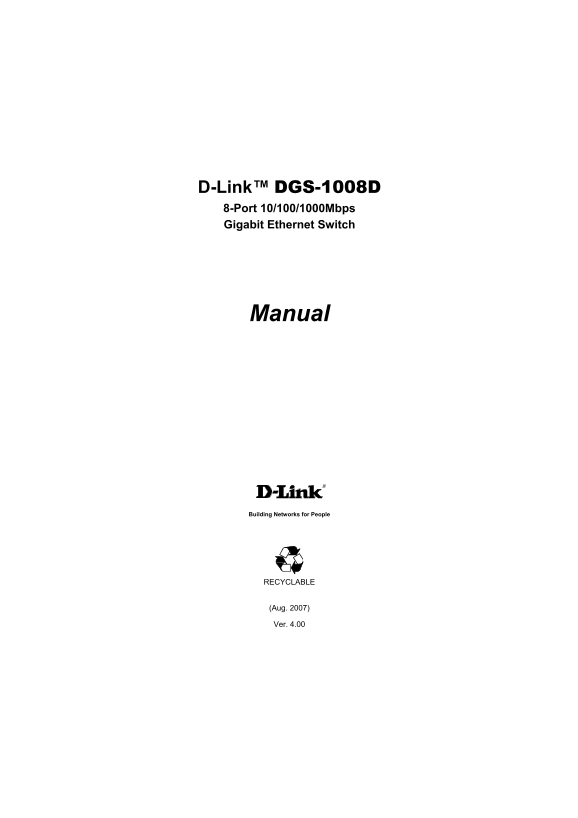

D-Link™ DGS-1008D 8-Port 10/100/1000Mbps Gigabit Ethernet Switch Manual Building Networks for People RECYCLABLE (Aug. 2007) Ver. 4.00
Page 2
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Information in this document is subject to change without notice. © 2006 D-Link Corporation. All rights reserved. Reproduction in any manner whatsoev...
Page 3
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch CONTENTS INTRODUCTION...................................................................................................................................
Page 4
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Preface The DGS-1008D Manual is divided into sections that describe the system installation and operating instructions with examples. Section 1, Intr...
Page 5
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage. Thr...
Page 6
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch • When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system, observe the following guidelines: – Install th...
Page 7
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Protecting Against Electrostatic Discharge Static electricity can harm delicate components inside your system. To prevent static damage, discharge st...
Page 8
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch SECTION 1 Introduction Ethernet Technology 802.1P and QOS D-Link Green Ethernet Technology Switch Description Features Ports Front-Panel Components E...
Page 9
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Mapping Qo S on the Switch The picture above shows the default priority setting for the Switch. Class-3 has the highest priority of the four priority...
Page 10
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch segments (ports). This allows the total network capacity to be multiplied, while still maintaining the same network cabling and adapter cards. For Fa...
Page 11
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch LED Indicators The LED indicators of the Switch include Power, 100/1000Mbps, and Link/Act. The following shows the LED indicators for the Switch alon...
Page 12
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Rear Panel Description DC Power Jack: Power is supplied through an external AC power adapter. Check the technical specification section for informati...
Page 13
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch SECTION 2 Installation Package Contents Before You Connect to the Network Installing the Switch Power On Package Contents Open the shipping carton of...
Page 14
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Mounting the Switch on a Wall The DGS-1008D can be mounted on a wall. Two mounting slots are provided on the bottom of the Switch for this purpose. M...
Page 15
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Power On Plug one end of the AC to DC power converter into the power connector of the Switch and the other end into the local power source outlet. Af...
Page 16
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Section 3 Connecting The Switch Switch To End Node Switch To Hub or Switch Connecting To a Server NOTE: All 8 high-performance NWay Ethernet ports ca...
Page 17
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Figure 3-2. Switch connected to a port on a hub or switch using either a straight or crossover cable–any standard Ethernet cable is fine Connecting T...
Page 18
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Appendix A Technical Specifications General Standards: IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3 10BASE-T IEEE 802.3x Flow Control IE...
Page 19
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Performance Transmission Method: Store-and-forward RAM Buffer: 144KBytes per device Filtering Address Table: 8K MAC address per device Packet Filteri...
Page 20
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch Glossary 1000BASE-LX – A short laser wavelength on multimode fiber optic cable for a maximum length of 550 meters. 1000BASE-SX – A long wavelength fo...
Page 21
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch latency – The delay between the time a device receives a packet and the time the packet is forwarded out of the destination port. line speed – See ba...
