D-Link DES-1008D 8-Port 10/100Mbps Dual Speed Ethernet Switch User’s Guide
Summary
This multi-function 8-port Ethernet switch provides reliable dual-speed networking, supporting both 10 Mbps and high-speed 100 Mbps connections in a star topology setup. It is designed for users needing to expand or stabilize existing local area networks quickly. The included guide offers comprehensive technical support, detailing crucial information such as wiring assignments for straight and crossover cables, full IEEE standards compliance, and detailed procedures for warranty service and maintenance.
Page 1 Text Content

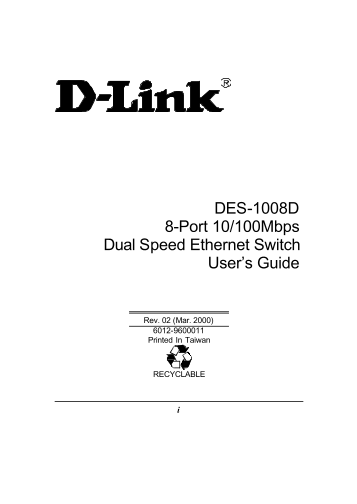

DES-1008D 8-Port 10/100Mbps
Dual Speed Ethernet Switch
User’s Guide
Rev. 02 (Mar. 2000) 6012-9600011 Printed In Taiwan
RECYCLABLE
Page Summary Contents For D-Link DES-1008D 8-Port 10/100Mbps Dual Speed Ethernet Switch User’s Guide
Page 1
DES-1008D 8-Port 10/100Mbps Dual Speed Ethernet Switch User’s Guide Rev. 02 (Mar. 2000) 6012-9600011 Printed In Taiwan RECYCLABLE
Page 2
LIMITED WARRANTY D-Link Systems, Inc. (“D-Link”) provides this limited warranty for its product only to the person or entity who originally purchased the product from D-Link or its authorized reseller...
Page 3
to the defective Hardware. The Warranty Period shall extend for an additional ninety (90) days after any repaired or replaced Hardware is delivered. If a material defect is incapable of correction, or...
Page 4
REGISTRATION CARD MAY AFFECT THE WARRANTY FOR THIS PRODUCT. Submitting A Claim. Any claim under this limited warranty must be submitted in writing before the end of the Warranty Period to an Authorize...
Page 5
surge, and cosmetic damage; and Any hardware, software, firmware or other products or services provided by anyone other than D-Link. Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPE...
Page 6
specific legal rights and the product owner may also have other rights which vary from state to state.
Page 7
FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable ...
Page 8
TABLE OF CONTENTS ABOUT THIS GUIDE........................................................................1 PURPOSE .......................................................................................
Page 9
ABOUT THIS GUIDE Congratulations on your purchase of the DES-1008D. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible desktop package. Purpose ...
Page 10
INTRODUCTION This chapter describes the features of the DES-1008D and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology The growing importance of ...
Page 11
Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected Ethernet or Fast Ethernet LAN segments. Switching is a cost-effective way of increasing the total networ...
Page 12
Features The DES-1008D was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. The DES-1008D with its smal...
Page 13
Uplink/ MDI-II (media dependent interface) port for uplink to another switch, hub or repeater. Store and forward switching scheme capability. As the result of complete frame checking and error frame f...
Page 14
Unpacking and Setup This chapter provides unpacking and setup information for the DES-1008D. Unpacking Open the box and carefully unpacks its contents. The box should contain the following items: One ...
Page 15
IDENTIFYING EXTERNAL COMPONENTS This section identifies all the major external components of the DES-1008D. Both the front and rear panels are shown followed by a description of each panel feature. Th...
Page 16
Full-Duplex/Collision (Full-Duplex/Collision) This LED indicator lights green when a respective port is in full duplex (FDX) mode. Otherwise, it is blinking when collisions are occurring on the respec...
Page 17
MDI-X Jacks: Use these jacks to connect stations to the hub. These are MDI-X (Medium-Dependent Interface, Cross-wired) jacks, which mean, you can use ordinary straight-through twisted-pair cables to c...
Page 18
CONNECTING THE DES-1008D This chapter describes how to connect the DES-1008D to your Fast Ethernet network. In each of the following figures, the DES-1008D is shown. PC to DES-1008D A PC can be connec...
Page 19
A. 10BASE-T Hub For a 10BASE-T hub, the DES-1008D LED indicators should light up as the following: “Full-Duplex/Collision” indicator is OFF. “100LINK/ACT,10LINK/ACT LED” indicator is light amber. B. 1...
Page 20
A. Using straight cable When using straight cable, this is done from the uplink (MDI-II) port of the DES-1008D (DES-1008D A) to any of the 10Mbps or 100Mbps (MDI-X) port of the other switch (switch B)...
Page 21
RJ-45 P IN SPECIFICATION When connecting your DES-1008D to another switch, a bridge or a hub, a modified crossover cable is necessary. Please review these products for matching cable pin assignment. T...
Page 22
The standard RJ-45 receptacle/connector The following shows straight cable and crossover cable connection: Straight cable for DES -1008D (uplink MDI-II port) to switch/Hub or other devices connection ...
Page 23
TECHNICAL SPECIFICATIONS General Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE Std. 802.3 NWay Auto-negotiation Protocol CSMA/CD Data Ethernet: 10Mbps (half dup...
Page 24
Physical and Environmental DC inputs DC5V/2.4A Power Consumption 1.2 watts. (max.) Temperature Operating: 0? ~ 50? C, Storage: -10? ~ 70? C Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90% Dimensions ...
Manual Details
| Brand | D-Link |
|---|---|
| Pages | 24 |
| File Size | 194.20 KB |
| Published | May 31, 2026 |
72 views
Enter the captcha to get the download link:
Frequently Asked Questions
What standards and speeds does this switch support?
It supports 10/100Mbps using IEEE 802.3 and IEEE 802.3u, including auto-negotiation.
How should I connect the DES-1008D to a standard network switch?
Use a straight cable when connecting the DES-1008D's uplink MDI-II port to another device like a switch or hub.
What is required for warranty service after purchase?
You must complete and timely return the Registration Card to an Authorized D-Link Service Office within ninety (90) days.
What are the power requirements for this unit?
The device requires a DC 5V/2.4A input and has a maximum power consumption of 1.2 watts.
