D-Link DES-1228 Switch Quick Installation Guide
Summary
Enhance your network infrastructure with this versatile smart switch. Featuring 24 auto-negotiable 10/100Mbps ports, plus advanced Gigabit options via combo SFPs, this device ensures robust connectivity for modern environments. The manual provides comprehensive, step-by-step instructions covering initial setup, physical installation (including rack mounting), cable connection guidelines, and detailed configuration using the web interface. It is ideal for IT professionals and network administrators needing reliable, feature-rich, and easily configurable smart networking solutions.

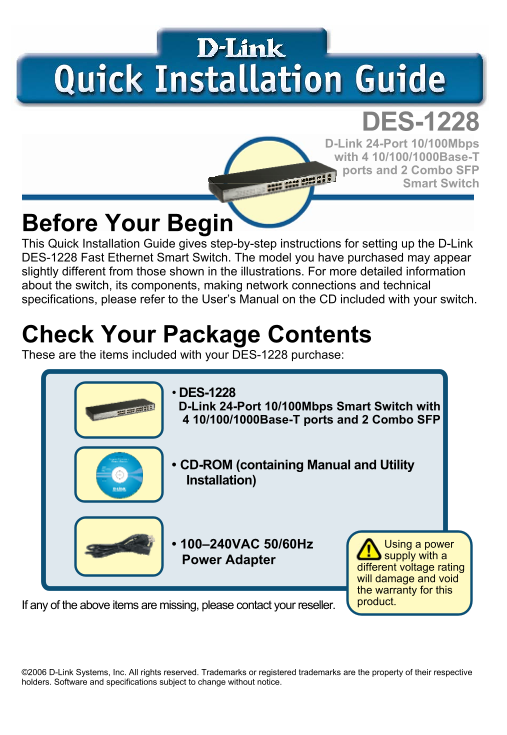

Page 1 Text Content
DES-1228 D-Link 24-Port 10/100Mbps with 4 10/100/1000Base-T ports and 2 Combo SFP Smart Switch
Before Your Begin This Quick Installation Guide gives step-by-step instructions for setting up the D-Link DES-1228 Fast Ethernet Smart Switch. The model you have purchased may appear slightly different from those shown in the illustrations. For more detailed information about the switch, its components, making network connections and technical specifications, please refer to the User’s Manual on the CD included with your switch.
Check Your Package Contents These are the items included with your DES-1228 purchase:
• DES-1228 D-Link 24-Port 10/100Mbps Smart Switch with 4 10/100/1000Base-T ports and 2 Combo SFP
• CD-ROM (containing Manual and Utility Installation)
• 100–240VAC 50/60Hz Using a power supply with a
Power Adapter
different voltage rating will damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
©2006 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice.
Page Summary Contents For D-Link DES-1228 Switch Quick Installation Guide
Manual Details
| Brand | D-Link |
|---|---|
| Pages | 10 |
| File Size | 521.54 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the required physical spacing for installation?
Leave at least 10cm (about 4 inches) of space at the front and rear of the switch for ventilation.
How can I install this switch in a rack?
Use mounting brackets on both sides, secure them with provided screws, and then use equipment rack screws to mount it in an EIA standard-size, 19-inch rack.
What type of cables are supported by the ports?
All ports support Auto-MDI/MDI-X, allowing any cable type (straight or crossover) to be used.
How do I configure and log into the switch?
The PC must have an IP address in the same range as the switch. Use a web browser and enter http://192.168.0.1 (default IP). The default password is "admin".
