D-Link DES-1026G Switch User's Manual

Summary

Upgrade your local network with this robust 24-Port switch, offering versatile connectivity including 10/100 Mbps Fast Ethernet ports alongside two dedicated Gigabit (10/100/1000 Mbps) connections. Engineered to boost bandwidth and segmentation for demanding networks, it provides reliable infrastructure ideal for businesses expanding their LAN capacity. This comprehensive manual guides users through detailed installation procedures, technical specifications, and advanced networking concepts necessary for seamless setup and maintenance by IT professionals.

📄 Preview ‹ PAGE OF 11 ›

‹

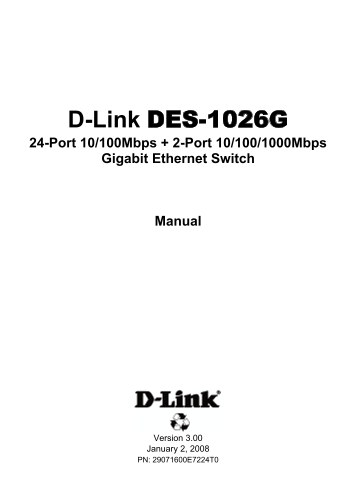

D-Link DES-1026G Switch User's Manual - Page 1

›

Page 1 Text Content

D-Link DES-1026G 24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch

Manual

Version 3.00 January 2, 2008 PN: 29071600E7224T0

Page Summary Contents For D-Link DES-1026G Switch User's Manual

Page 1 D-Link DES-1026G 24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch Manual Version 3.00 January 2, 2008 PN: 29071600E7224T0

Page 2 Table of Contents 1. Package Contents 2. Introduction........................................................ 3. Installation.......................................................... 4. Technical Spe...

Page 3 1. Package Contents One DES-1026G 24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch One AC power cord Four rubber feet to be used for shock cushioning Screws and two mounting bracket...

Page 4 extension of the 10Base T Ethernet standard, designed to raise the data transmission capacity of 10Base T from 10Mbits/sec to 100Mbits/sec. An important technology incorporated by 100Base T is its use...

Page 5 For Fast Ethernet networks, a switch is an effective way of eliminating the problem of chaining hubs beyond the “two-repeater limit.” A switch can be used to split parts of the network into different ...

Page 6 LED stands for Light-Emitting Diode. The front panel LEDs provides instant status feedback and simplifies monitoring and troubleshooting tasks. LED indicators of the Switch POWER On When the Power LED...

Page 7 Blinking When the LED is blinking, the respective port is transferring or receiving data on a 10/100/1000Mbps Ethernet network. Off No link. 1000Mbps On When the LED lights on, the respective port is ...

Page 8 1000BASE-T Twisted Pair Ports (Port 25~26) The DES-1026G is equipped with two Gigabit twisted pair ports that are auto negotiable 10/100/1000Mbps and also support auto MDI/MDIX crossover detection. Th...

Page 9 When installing the Switch on a level surface, attach the rubber feet to the bottom of each device. The rubber feet cushion the hub and protects the hub case from scratching. Attach the adhesive rubbe...

Page 10 Connecting Network Cable The DES-1026G supports 10/100/1000Mbps Gigabit Ethernet. It runs full/half duplex transfer mode for 10/100Mbps and full duplex transfer mode for 1000Mbps. Each port on the DES...

Page 11 4. Technical Specifications General IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet Protocol CSMA/CD Ethernet: 10Mbps (half duplex...

Manual Details

Brand	D-Link
Pages	11
File Size	432.75 KB
Published	May 28, 2026

61 views

Enter the captcha to get the download link:

Frequently Asked Questions

How does Auto-MDI/MDI-X help with cabling?

This feature eliminates the need for users to worry about using either a standard or crossover cable.

What is the recommended cable type for Gigabit connections?

For 1000BASE-T, Cat. 5 UTP/STP is adequate, but Cat. 5E is recommended.

How does a switch improve network performance?

A switch increases capacity and decreases loading by dividing the local area network into separate LAN segments.

What voltage requirements does the AC power supply need to meet?

The unit requires an AC input ranging from 100V to 240V at 50/60 Hz.
