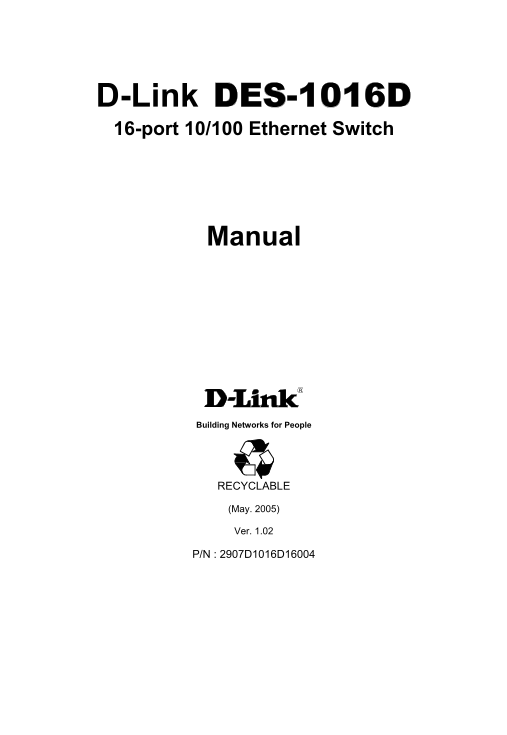

D-Link DES-1016D 16-port 10/100 Ethernet Switch Manual Building Networks for People RECYCLABLE (May. 2005) Ver. 1.02
Page 2
TABLE OF CONTENTS ABOUT THIS GUIDE ................................................................1 PURPOSE TERMS/USAGE...................................................................................
Page 3
ABOUT THIS GUIDE Congratulations on your purchase of the DES-1016D 16-port 10/100Mbps Auto-negotiation Fast Ethernet Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network ca...
Page 4
INTRODUCTION This chapter describes the features of the DES-1016D and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology The growing importance of ...
Page 5
Switching Technology Another approach to pushing beyond the limits of Ethernet technology is the development of switching technology. A switch bridges Ethernet packets at the MAC address level of the ...
Page 6
network congestion problems. Features The DES-1016D is designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously....
Page 7
UNPACKING AND SETUP This chapter provides unpacking and setup information for the DES-1016D. Unpacking Open the shipping carton for the Switch and carefully unpack its contents. The carton should cont...
Page 8
4. Make sure that there is proper heat dissipation from and adequate ventilation around the Switch. Do not place heavy objects on the Switch. Desktop Installation When installing the Switch on a deskt...
Page 9
Attaching the mounting brackets to the Switch Then, use screws provided with the equipment rack to mount each switch in the rack. Installing the Switch in an equipment rack
Page 10
IDENTIFYING EXTERNAL COMPONENTS This section identifies all the major external components of the DES-1016D. The figure below shows the front panels of the DES-1016D. 16-port 10/100Mbps Fast Ethernet S...
Page 11
operation mode. Otherwise, it is blinking when collisions are occurring on the respective port in half duplex operation mode. 100Mbps This LED indicator lights green when the port is connected to a 10...
Page 12
TECHNICAL SPECIFICATION General Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet Protocol CSMA/CD Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex) Fas...
Page 13
Performance Transmits Method: Store-and-forward RAM Buffer: 160Kbytes per device Filtering Address Table: 8K entries per device Packet 10Mbps Ethernet: 14,880/pps Filtering/Forwar 100Mbps Fast Etherne...
Page 14
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty: • Only to the person or entity that originally purchased the product from D-Link o...
Page 15
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRO...
Page 16
Product Registration Register online your D-Link product at http://support.dlink.com/register/ Product registration is entirely voluntary and failure to complete or return this form will not diminish ...
