D-Link DES-1008P User Guide
Summary
This versatile 8-port 10/100Mbps Fast Ethernet Switch is designed to deliver robust network connectivity while integrating power through four dedicated PoE ports. It is ideal for small businesses and technical users needing to connect devices like WLAN access points or IP security cameras. The included user guide provides comprehensive support, covering system unpacking, detailed installation steps, advanced network technology explanations (including PoE prioritization rules), and complete technical specifications for seamless deployment.
Page 1 Text Content

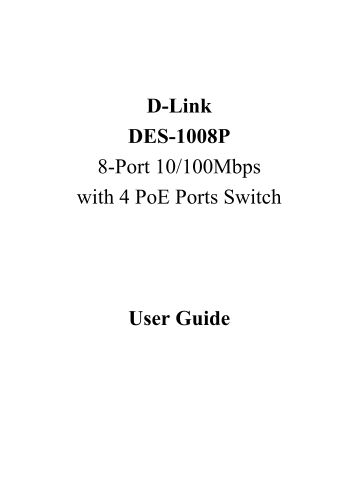

D-Link DES-1008P 8-Port 10/100Mbps with 4 Po E Ports Switch
User Guide
Page Summary Contents For D-Link DES-1008P User Guide
Page 1
D-Link DES-1008P 8-Port 10/100Mbps with 4 Po E Ports Switch User Guide
Page 2
FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable ...
Page 3
UL Warning a) Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. ...
Page 4
TABLE OF CONTENTS About This Guide................................................................................. Purpose Terms/Usage Introduction.......................................................
Page 5
ABOUT THIS GUIDE Congratulations on your purchase of the D-Link DES-1008P, an 8- Port 10/100Mbps Fast Ethernet Switch with 4-Port Po E. This Switch integrates 100Mbps Fast Ethernet and 10Mbps Ethernet...
Page 6
INTRODUCTION This chapter describes the features of the D-Link DES-1008P Fast Ethernet Po E Switch and some background information about Ethernet/Fast Ethernet, Switching and Power over Ethernet techn...
Page 7
Switching Technology Another approach to pushing beyond the limits of Ethernet technology is the development of switching technology. A switch bridges Ethernet packets at the MAC address level of the ...
Page 8
Power over Ethernet (Po E) Power over Ethernet (Po E) integrates power and data onto one single cabling infrastructure, eliminating the need to have AC power available at all locations. Power and Data...
Page 9
UNPACKING AND INSTALLATION This chapter provides unpacking and installation information for the Switch. Unpacking Open the shipping cartons of the Switch and carefully unpack its contents. The carton ...
Page 10
Connecting Network Cable The Switch support 8 10/100Mbps Ethernet ports and Port 1 ~ port 4 are Po E Enabled ports, these Po E port will automatically activate when a compatible terminal is identified...
Page 11
IDENTIFYING EXTERNAL COMPONENTS This chapter describes the front panel, rear panel, and LED indicators of the Switch. Front Panel The figure below shows the front panels of the Switch. Figure 1. Front...
Page 12
These ports support network speeds of either 10Mbps or 100Mbps, and can operate in half- and full- duplex transfer modes. These ports also support automatic MDI/MDIX crossover detection, which gives t...
Page 13
UNDERSTANDING LED INDICATORS The front panel LEDs provides instant status feedback, and helps monitor and troubleshoot when needed. Figure 3. LED indicators of the Switch System LED PWR: (Power Indica...
Page 14
Po E MAX On : When the power output to PDs has reached or exceeded the maximum power budget. No additional PDs connected will be powered. Off : When the system is using less than 46W Blinking When the...
Page 15
For example: There are POE PDs connected to the POE Switch and the total power consumption is 48 watts. The system will reserve 8 watts for a buffer and the POE MAX LED will light up. Once there is an...
Page 16
TECHNICAL SPECIFICATIONS General Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3af Power over Ethernet Protocol CSMA/CD Data...
Page 17
Performance RAM Buffer: 96K bytes per device Filtering Address Table: 1K entries per device Packet 10Mbps Ethernet: 14,880/pps Filtering/Forwarding Rate: 100Mbps Fast Ethernet: 148,800/pps MAC Address...
