D-Link DGS-1008D User’s Manual
Summary
The D-Link DGS-1008D is a robust 8-port unmanaged Gigabit Ethernet switch designed to provide high-speed, reliable local network connectivity (10/100/1000Mbps). This comprehensive manual details everything necessary for proper installation and operation. Key topics covered include understanding advanced networking standards like Fast and Gigabit technologies, leveraging Quality of Service (QoS) features, and identifying physical components. It is ideal for small businesses, educational facilities, or homeowners needing to reliably expand their network infrastructure.
Page 1 Text Content

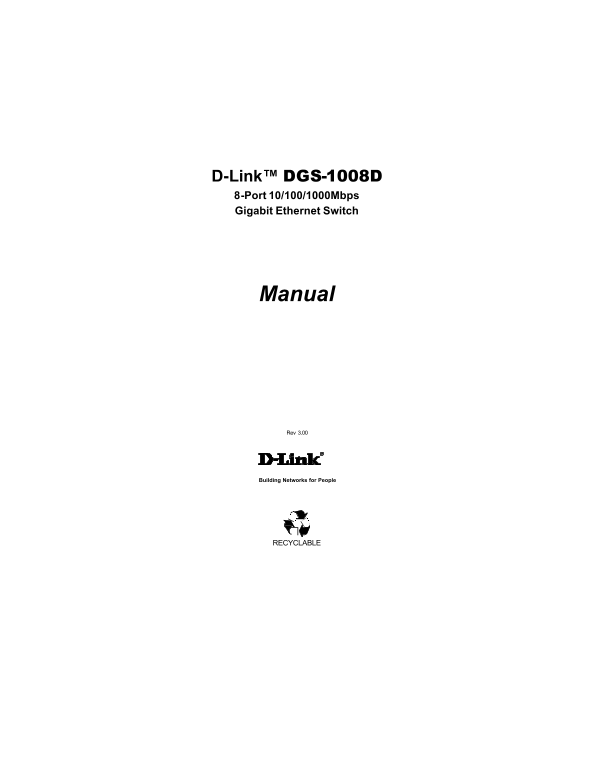

D-Link™ DGS-1008D 8-Port 10/100/1000Mbps Gigabit Ethernet Switch
Manual
Rev 3.00
Building Networks for People
RECYCLABLE
Page Summary Contents For D-Link DGS-1008D User’s Manual
Page 1
D-Link™ DGS-1008D 8-Port 10/100/1000Mbps Gigabit Ethernet Switch Manual Rev 3.00 Building Networks for People RECYCLABLE
Page 2
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Information in this document is subject to change without notice. © 2006 D-Link Corporation. All rights reserved. Reproduction in any manner whatsoe...
Page 3
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch CONTENTS INTRODUCTION..................................................................................................................................
Page 4
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Preface The DGS-1008D Manual is divided into sections that describe the system installation and operating instructions with examples. Section 1, Int...
Page 5
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage. Th...
Page 6
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch • When connecting or disconnecting power to hot -pluggable power supplies, if offered with your system, observe the following guidelines: – Install ...
Page 7
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Protecting Against Electrostatic Discharge Static electricity can harm delicate components inside your system. To prevent static damage, discharge s...
Page 8
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch SECTION 1 Introduction Ethernet Technology 802.1P and QOS Switch Description Features Ports Front-Panel Components Ethernet Technology Fast Ethernet...
Page 9
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Mapping Qo S on the Switch The picture above shows the default priority setting for the Switch. Class-3 has the highest priority of the four priorit...
Page 10
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Switch Description The DGS-1008D Switch is equipped with five ports providing dedicat ed 10, 100, or 1000 Mbps bandwidth. These ports can be used fo...
Page 11
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch LED Indicators The LED indicators of the Switch include Power, 100/1000Mbps, and Link/Act. The following shows the LED indicators for the Switch alo...
Page 12
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Rear Panel Description DC Power Jack: Power is supplied through an external AC power adapter. Check the technical specification section for informat...
Page 13
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch SECTION 2 Installation Package Contents Before You Connect to the Network Installing the Switch Power On Package Contents Open the shipping carton o...
Page 14
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Mounting the Switch on a Wall The DGS-1008D can be mounted on a wall. Two mounting slots are provided on the bottom of the Switch for this purpose. ...
Page 15
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Power On Plug one end of the AC to DC power converter into the power connector of the Switch and the other end into the local power source outlet. A...
Page 16
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Section 3 Connecting The Switch Switch To End Node Switch To Hub or Switch Connecting To a Server NOTE: All 8 high -performance NWay Ethernet ports ...
Page 17
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Figure 3-2. Switch connected to a port on a hub or switch using either a straight or crossover cable–any standard Ethernet cable is fine Connecting ...
Page 18
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Appendix A Technical Specifications General Standards: IEEE 802.3ab 1000BASE -T IEEE 802.3u 100BASE-TX IEEE 802.3 10BASE-T IEEE 802.3x Flow Control ...
Page 19
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Performance Transmission Method: Store-and-forward RAM Buffer : 144KBytes per device Filtering Address Table: 8K MAC address per device Packet Filte...
Page 20
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Glossary 1000BASE-LX – A short laser wavelength on multimode fiber optic cable for a maximum length of 550 meters. 1000BASE-SX – A long wavelength f...
Page 21
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch latency – The delay between the time a device receives a packet and the time the packet is forwarded out of the destination port. line speed – See b...
Page 22
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty: • Only to the person or entity...
Page 23
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch What Is Not Covered: The Limited Warranty provided herein by D-Link does not cover: Products that, in D-Link’s judgment, have been subjected to abus...
Page 24
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Register online your D-Link product at http://support.dlink.com/register/ Product registration is entirely voluntary and failure to complete or retu...
Page 25
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch International Offices U.S.A Denmark Egypt 17595 Mt. Herrmann Street Naverland 2, DK -2600 19 El-Shahed Helmy, El Masri Fountain Valley, CA. 92708 Gl...
Page 26
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch Registration Card (All Countries and Regions excluding USA) Print, type or use block letters. Your name: Mr./Ms_____________________________________...
Page 27
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch
Page 28
D-Link DGS -1008D Unmanaged Gigabit Ethernet Switch
