D-Link DKVM-16 Manual
Summary
The D-Link DKVM-16 is a professional KVM switch designed for IT environments, providing centralized control over up to 128 servers using a single monitor, keyboard, and mouse set. This detailed manual guides system administrators through every aspect of the hardware, including installation, advanced daisy-chaining techniques, hot plug functionality, and troubleshooting. It ensures efficient, scalable management of server racks by supporting multiple video resolutions (VGA/SVGA) and various legacy connections.
Page 1 Text Content
D-Link DKVM-16 16-Port Keyboard, Video, and Mouse Switch
Manual Version 1.2
Building Networks for People
Page Summary Contents For D-Link DKVM-16 Manual
Page 1

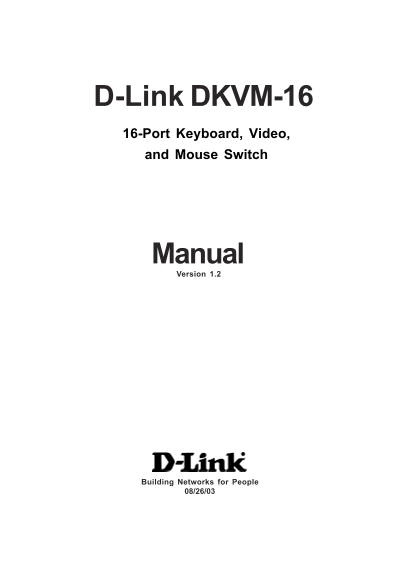

D-Link DKVM-16 16-Port Keyboard, Video, and Mouse Switch Manual Version 1.2 Building Networks for People
Page 2
Contents Package Contents ................................................................................3 Introduction...................................................................................
Page 3
Package Contents Contents of Package: D-Link DKVM-16 16-Port Keyboard, Video, and Mouse Switch 1 DC12V, 1A Power Adapter 3 sets of 3 in1 KVM Cable Kits (1 set: 3 ft. 3-in-1 Cable Kit to daisy chain, 2...
Page 4
Introduction The D-Link DKVM-16 is a Keyboard, Video and Mouse KVM switch that allows you to control up to 16 server computers using one keyboard, mouse, and monitor. It is easy to use, powerful, and ...
Page 5
Features and Benefits Allows users to control sixteen computers from one keyboard, mouse, and monitor No software is required; each channel has a dedicated microprocessor to intelligently manage the b...
Page 6
Hardware Installation Front Panel Layout Current Active Bank Display Current Active Port Display Bank Select Port Select Power Switch Rear Panel Layout PS/2 Keyboard Input VGA Monitor Connector VGA Si...
Page 7
Hardware Installation (Continued) WARNING Make sure that all of your computers are powered off before attempting to connect the cabling to avoid damage to your DKVM-16 Step 1 Find a convenient place t...
Page 8
Hardware Installation (Continued) Step 3 Connect the keyboard console to the DKVM-16. If you have an AT type key- board, you will need an AT to PS/2 adapter. Step 4 Connect the mouse console to the DK...
Page 9
Hardware Installation (Continued) Step 5 Connect one end of the included VGA cable (15-pin HDDB Male / Male) to the female connectors on the back of the PC. Connect the other end of the cable to the r...
Page 10
Hardware Installation (Continued) Step 7 Using the included 3-in-1 cable, locate the keyboard connector (purple) and connect one end to the PS/2 keyboard port on the back panel of the computer, and th...
Page 11
Hardware Installation (Continued) Step 11 Now power up all computers simultaneously. The first computer will be shown on the monitor. You may check to see if the mouse, keyboard, and monitor work afte...
Page 12
Using the DKVM-16 The “Power On” State of the DKVM-16 When you power on the KVM switch, it will prompt you for the password; the default value is eight zeros – “00000000”. Please enter eight zeros and...
Page 13
Using the DKVM-16 (Continued) The Reset Button Pressing the select and bank button of the master switch simultaneously will reset the KVM switch. This reset action returns the KVM switch back to the i...
Page 14
Using the DKVM-16 (Continued) Hot Key Commands (Continued) Scroll Scroll Page Previous Bank Lock Lock Up Scroll Scroll Page Next Bank Lock Lock Down Note: Bank no. and port no. selection must be made ...
Page 15
Using the DKVM-16 (Continued) Hot Key Commands (Continued) Scroll Scroll =S Auto Scan+ Lock Lock Note: 1. If you have already set up the scan mode command, DKVM-16 will issue one beep to confirm each ...
Page 16
Daisy-Chaining the DKVM-16 Please closely follow the steps below to daisy-chain your DKVM-16 units. You can daisy chain up to 8 DKVM-16s. Step 1 Connect your keyboard, mouse, and monitor to the consol...
Page 17
Hot Plug The DKVM-16 supports the “Hot Plug” function for easy addition or removal of PCs. The user can arrange or maintain PCs as follows: 1. A PC can be disconnected and reconnected to the same or d...
Page 18
On Screen Display Operation When you select the On Screen Display Operation manual window using the “Hot Key” function, the following on screen display will appear on your monitor. BANK : 1 Bank numbe...
Page 19
On Screen Display Operation (Continued) CHANGE PASSWORD The Change Password function allows the user to change the password used to access all connected PC systems. The default password is 8 digits, “...
Page 20
On Screen Display Operation (Continued) ARROW KEYS (!/ ") You can use the up arrow key “!” or the down arrow key “"” to select the port destination by PC name. After you have selected the PC...
Page 21
Troubleshooting General Problems Q: The OSD menu does not display a “ “ on a channel where a computer is connected and powered up. A: DKVM-16 updates “ “ every 2 seconds. Use the hot key to access the...
Page 22
Troubleshooting (Continued) Keyboard Problems Q: The keyboard is not detected or a keyboard error is reported during boot-up. A: Check the cables and make sure that they are connected prop- erly to th...
Page 23
Troubleshooting (Continued) Q: The computer boots up correctly, but the mouse does not work. A: Check the cables and make sure that they are connected prop- erly to the correct ports. Make sure that t...
Page 24
Troubleshooting (Continued) Q: The wheel on the mouse does not work on my computer. A: Make sure that the mouse is a Microsoft® Intellimouse® or Microsoft® Intellimouse® Explorer®. The DKVM-16 does no...
Page 25
Specifications Computer Connections : 16 Display LED Indication : 3 Keyboard : 6-pin Mini-DIN Female Mouse : 6-pin Mini-DIN Female Monitor : 15-pin HD DB type Female Cascade : Two 6-pin Mini-DIN + One...
Page 26
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited warranty for its product only to the person or entity that originally purchased the product ...
Page 27
Submitting A Claim: The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and the product is within warranty, th...
Page 28
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or consequential damages, or limitations o...
Page 29
Technical Support You can find software updates and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States and within Canada for the du...
