D-Link DGE-530T 32-bit Gigabit Network Adapter User Manual
Summary
Upgrade your existing computer with the D-Link DGE-530T Gigabit Network Adapter, a powerful PCI card designed for high-demand workstations and servers. This adapter ensures reliable 10/100/1000 Mbps connectivity while supporting advanced features like VLAN tagging (802.1Q), QoS, Jumbo Frames, and Wake-on-LAN. The accompanying manual provides comprehensive instructions on system installation, detailed setup of complex networking protocols, troubleshooting, and optimal configuration for professional network needs.
Page 1 Text Content

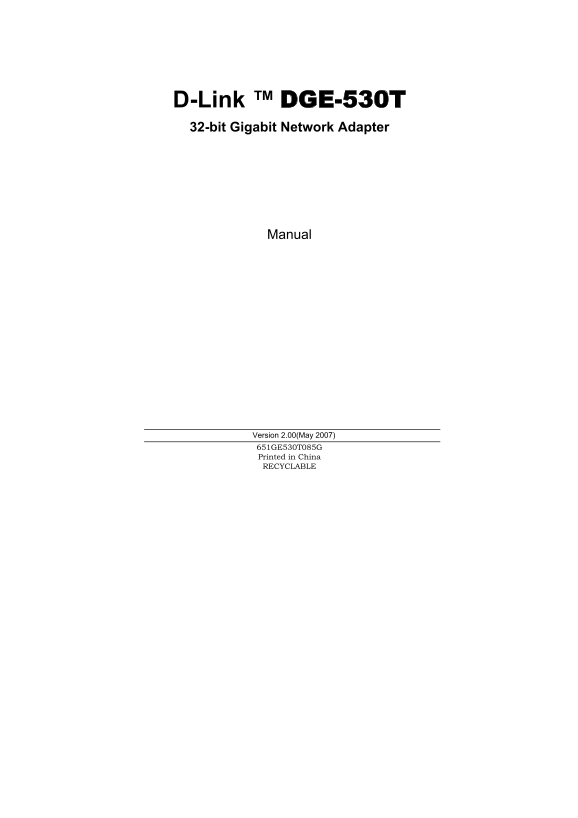

D-Link ™ DGE-530T 32-bit Gigabit Network Adapter
Manual
Version 2.00(May 2007) 651GE530T085G Printed in China RECYCLABLE
Page Summary Contents For D-Link DGE-530T 32-bit Gigabit Network Adapter User Manual
Page 1
D-Link ™ DGE-530T 32-bit Gigabit Network Adapter Manual Version 2.00(May 2007) 651GE530T085G Printed in China RECYCLABLE
Page 2
Table of Contents INTRODUCTION..............................................................1 System Requirements ......................................................1 Features ........................
Page 3
DGE-530T Gigabit Ethernet Adapter Card Introduction Thank you for choosing the D-Link DGE-530T, the value leader among Gigabit adapters for PCI Bus personal computers. This introduction gives a genera...
Page 4
DGE-530T Gigabit Ethernet Adapter Card • Full-duplex Gigabit Ethernet interface that delivers 2Gbps aggregate bandwidth • Supports half and full duplex at 10Mbps, half and full-duplex at 100Mbps, and ...
Page 5
DGE-530T Gigabit Ethernet Adapter Card Installation Unpack and Inspect CAUTION: Under ordinary circumstances, a DGE-530T card will not be affected by a static charge that may be received through your ...
Page 6
DGE-530T Gigabit Ethernet Adapter Card Software Installation The CD included with your DGE-530T is designed to make installation of necessary software a painless and trouble-free process. Simply click...
Page 7
DGE-530T Gigabit Ethernet Adapter Card Advanced Features Wake On LAN This Wake-on-LAN function can wake up the system from the sleeping mode to the fully powered mode over the network immediately and ...
Page 8
DGE-530T Gigabit Ethernet Adapter Card The D-Link SNMP Agent Utility Included on the installation CD is a program for viewing and configuring the DGE-530T, known as the D-Link SNMP Agent Utility. This...
Page 9
DGE-530T Gigabit Ethernet Adapter Card To use the D-Link PC agent, click Start > Programs > D-Link PC Agent > D-Link PC Agent. The following window will appear for the user to configure. This...
Page 10
DGE-530T Gigabit Ethernet Adapter Card The Configuration Tab has two fields. The first field, “The agent is for:”, allows the user to choose an Ethernet card to configure, from a pull down menu. The “...
Page 11
DGE-530T Gigabit Ethernet Adapter Card The user may set the following fields. • Name: A name chosen to identify the user when configuring the DGE-530T. • Location: The user may identify the physical l...
Page 12
DGE-530T Gigabit Ethernet Adapter Card SNMP SNMP is an acronym for Simple Network Management Protocol. This network protocol is used to manage TCP/IP networks by using “Traps” sent from devices compli...
Page 13
DGE-530T Gigabit Ethernet Adapter Card such as video-conferencing, is of a higher priority, with a slight delay of packets resulting in noticeable degeneration of video and audio quality, while other ...
Page 14
DGE-530T Gigabit Ethernet Adapter Card To add a VLAN setting to this window, click the Add VLAN button at the bottom of this screen, which will open the following configuration window. To set the VLAN...
Page 15
DGE-530T Gigabit Ethernet Adapter Card Click OK when your settings are complete.
Page 16
DGE-530T Gigabit Ethernet Adapter Card The Cable Diagnostic Feature The Virtual Cable Tester (VCT) is a feature for examining the quality and the characteristics of a network cable that has been conne...
Page 17
DGE-530T Gigabit Ethernet Adapter Card Troubleshooting If you experience any problems with the adapter, check to see that: • the appropriate driver is loaded; • the proper grade of cable is employed f...
Page 18
Specifications EMC And Safety Certifications: • FCC Class B • CE Class B • BSMI Class B • C-Tick Host interface: 32-bit PCI Bus (Bus Master) I/O base address assigned by Plug and Play system Interrupt...
Page 19
DGE-560SX 100/1000 PCI Adapter Technical Specifications Specifications Network Media Category 5e/5 cable Connector RJ45 Controller Marvell 88E8001 Bus Architecture 32 bit PCI Bus Interface Memory 512 ...
Page 20
DGE-560SX 100/1000 Mbps PCI Adapter Specifications Compliance • IEEE 802.3ab, 802.3T, 802.3u, 802.3z • IEEE 802.1Q VLAN • IEEE 802.3x Flow-Control • IEEE 802.1p Quality of Service • Wo L Power Managem...
Page 21
DGE-560SX 100/1000 PCI Adapter Specifications EMI Certification • FCC Class B • CE Mark Class B • BSMI Class B • C-Tick
Page 22
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty: • Only to the person or entity that originally purchased the product from D-Link o...
Page 23
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist the customer in resolving any suspected defects with the product. If the product...
Page 24
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRO...
Page 25
Product Registration Register your D-Link product online at http://support.dlink.com/register/ Product registration is entirely voluntary and failure to complete or return this form will not diminish ...
Page 26
Worldwide offices URL U.S.A Spain Turkey URL: www.dlink.com URL: www.dlink.es URL: www.dlink.com.tr Canada Portugal Iran URL: www.dlink.ca URL: www.dlink.es URL: www.dlink-me.com/ European HQ & UK...
