Miniature IR receivers perfect for reliable remote control decoding in embedded systems. This module features an integrated photodetector, preamplifier, and internal filter, enabling high-speed data reception up to 2400 bit/s while utilizing advanced circuitry (like RECS-80) to suppress interference from noise and ambient light sources. The accompanying manual provides comprehensive technical specifications, detailed application circuits, operational parameters across various frequencies, and guidance for hardware designers developing professional remote-sensing applications.

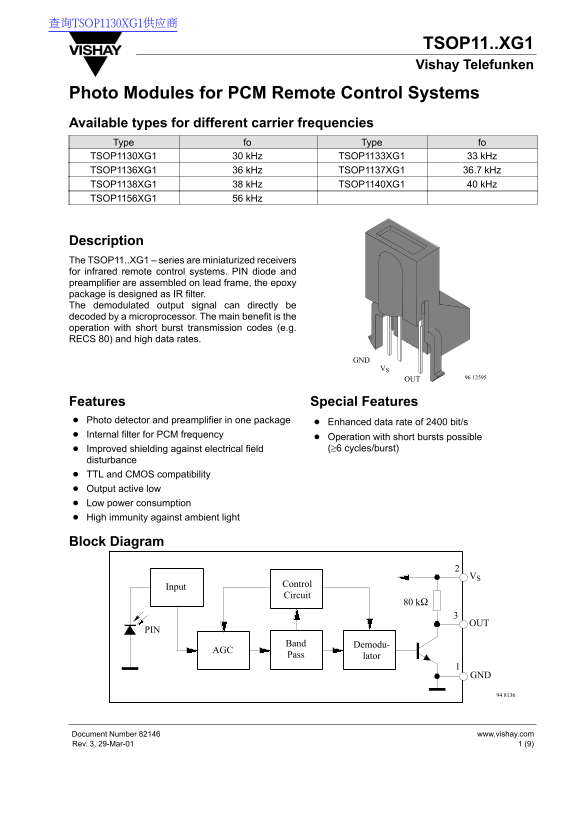

Page 1 Text Content
查询TSOP1130XG1供应商
TSOP11..XG1 Vishay Telefunken
Photo Modules for PCM Remote Control Systems Available types for different carrier frequencies Type fo Type fo TSOP1130XG1 30 k Hz TSOP1133XG1 33 k Hz TSOP1136XG1 36 k Hz TSOP1137XG1 36.7 k Hz TSOP1138XG1 38 k Hz TSOP1140XG1 40 k Hz TSOP1156XG1 56 k Hz
Description The TSOP11..XG1 – series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes (e.g. RECS 80) and high data rates.
GND VS
Features Special Features Photo detector and preamplifier in one package Enhanced data rate of 2400 bit/s Internal filter for PCM frequency
Operation with short bursts possible Improved shielding against electrical field (≥6 cycles/burst)
disturbance TTL and CMOS compatibility Output active low Low power consumption High immunity against ambient light
Block Diagram
Control
Input
Circuit
Band Demodu-
Pass lator
GND 94 8136
www.vishay.com Document Number 82146
1 (9)Rev. 3, 29-Mar-01
Page Summary Contents For Vishay TSOP11..XG1 Data Sheet
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 9 |
| File Size | 2.54 MB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Which TSOP model should I use if my infrared carrier frequency is 38 kHz?
You should select the TSOP1138XG1 type, as it is specified for operation at a 38 kHz carrier frequency.
What are the key features of this miniaturized receiver series?
It integrates the photo detector and preamplifier on one package, provides enhanced data rates (2400 bit/s), and includes an internal IR filter.
What is the maximum permissible operating temperature range?
The TSOP11..XG1 family has an operating ambient temperature range of -25°C to +85°C.
Does it handle interference from modern lighting sources like fluorescent lamps?
It can still receive data signals if the disturbance signal has a frequency-corresponding gap time at least as long as the burst length found in the data stream.
