Vishay TSOP11..TB1 Data Sheet

Summary

Discover the TSOP11...TB1 series, a line of specialized infrared photo modules designed for reliable remote control reception across 30 kHz to 56 kHz frequencies. This miniature receiver integrates the photo detector and preamplifier into one robust package, enabling signal decoding suitable for direct microchip interfacing. The product's manual provides comprehensive technical details, covering electrical specifications, application circuits, performance ratings, and advanced compatibility with various short-burst coding formats (like NEC) while ensuring high interference immunity for electronics designers building sophisticated wireless sensor systems.

📄 Preview PAGE OF 10

Page 1 Text Content

查询TSOP1136TB1供应商

TSOP11..TB1 Vishay Telefunken

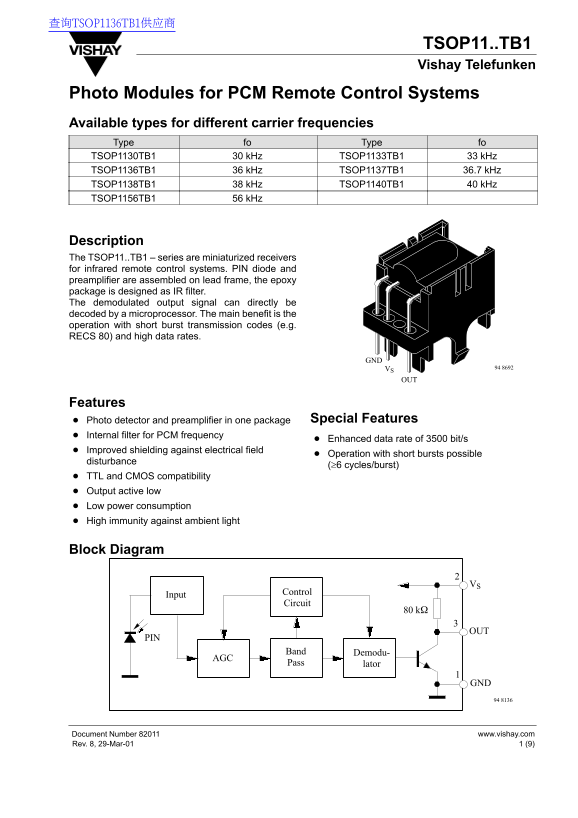

Photo Modules for PCM Remote Control Systems Available types for different carrier frequencies Type fo Type fo TSOP1130TB1 30 k Hz TSOP1133TB1 33 k Hz TSOP1136TB1 36 k Hz TSOP1137TB1 36.7 k Hz TSOP1138TB1 38 k Hz TSOP1140TB1 40 k Hz TSOP1156TB1 56 k Hz

Description The TSOP11..TB1 – series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes (e.g. RECS 80) and high data rates.

VS 94 8692

Features

Photo detector and preamplifier in one package Special Features

Internal filter for PCM frequency

Enhanced data rate of 3500 bit/s

Improved shielding against electrical field

Operation with short bursts possible

disturbance

(≥6 cycles/burst)

TTL and CMOS compatibility Output active low Low power consumption High immunity against ambient light

Block Diagram

Control

Input

Circuit

Band Demodu-

Pass lator

GND 94 8136

www.vishay.com Document Number 82011

1 (9)Rev. 8, 29-Mar-01

Page Summary Contents For Vishay TSOP11..TB1 Data Sheet

Page 1 查询TSOP1136TB1供应商 TSOP11..TB1 Vishay Telefunken Photo Modules for PCM Remote Control Systems Available types for different carrier frequencies Type fo Type fo TSOP1130TB1 30 k Hz TSOP1133TB1 33 k Hz TS...
Page 2 TSOP11..TB1 Vishay Telefunken Absolute Maximum Ratings Tamb = 25C Parameter Test Conditions Symbol Value Unit Supply Voltage (Pin 2) VS –0.3...6.0 Supply Current (Pin 2) IS m A Output Voltage (Pin 3)...
Page 3 TSOP11..TB1 Vishay Telefunken Suitable Data Format The circuit of the TSOP11..TB1 is designed in that Some examples for suitable data format are: way that unexpected output pulses due to noise or NEC ...
Page 4 TSOP11..TB1 hr es ho ld rr ad ia nc (m /m )2 ut pu t P ul se en gt (m s) el . R es po ns iti vi ty in pot in Vishay Telefunken Typical Characteristics (Tamb = 25C unless otherwise specified) 1.0 94 9...
Page 5 TSOP11..TB1 Vishay Telefunken nv el op ut yc le Optical Test Signal Ee ( IR diode TSAL6200, IF=0.4 A, N=6 pulses, f=f0, T=10 ms ) 0.9 tpi * * tpi  6/fo is recommended for optimal function = 950 nm, O...
Page 6 TSOP11..TB1 Vishay Telefunken 95 11339p2 drel – Relative Transmission Distance 95 11340p2 drel – Relative Transmission Distance Figure 13. Vertical Directivity ϕy Figure 14. Horizontal Directivity ϕx ...
Page 7 TSOP11..TB1 Vishay Telefunken Dimensions in mm www.vishay.com Document Number 82011 7 (9)Rev. 8, 29-Mar-01
Page 8 TSOP11..TB1 Vishay Telefunken GND 2.4 ( 2) www.vishay.com Document Number 82011 8 (9) Rev. 8, 29-Mar-01
Page 9 TSOP11..TB1 Vishay Telefunken Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statutory requirem...
Page 10 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
