Vishay TSOP11..KA1 Data Sheet

Summary

Miniaturized infrared (IR) receiver modules designed for reliable remote control signal capture. These high-performance Vishay components feature integrated PIN diodes and preamplifiers, ensuring operation with short burst codes and enhanced data rates up to 4000 bit/s across various frequencies. This technical manual provides comprehensive details including electrical ratings, sensitivity testing against ambient light and disturbances, operational diagrams, and compatibility information. It is essential reading for electronic engineers and hardware designers integrating remote control functionality into microprocessors or automated systems.

📄 Preview PAGE OF 8

Page 1 Text Content

查询TSOP1130KA1供应商

TSOP11..KA1

VISHAY

Vishay Semiconductors

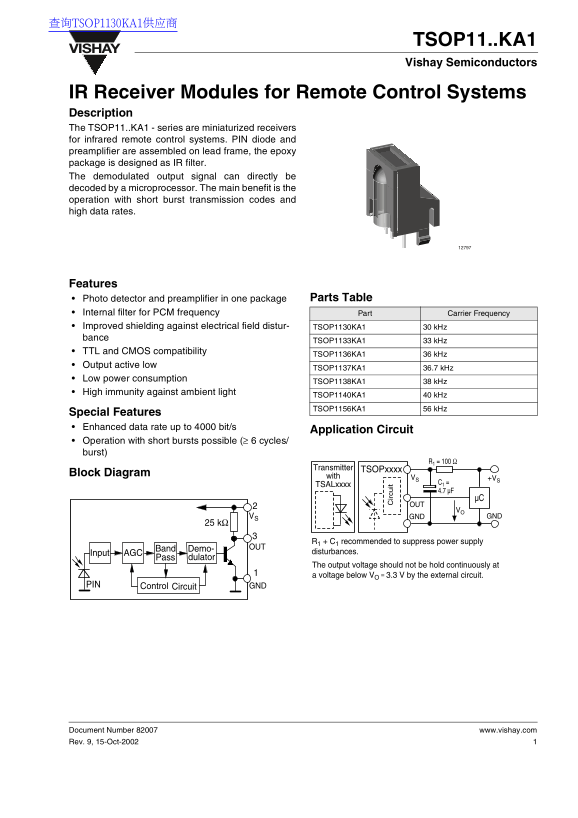

IR Receiver Modules for Remote Control Systems Description The TSOP11..KA1 - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes and high data rates.

Features

Photo detector and preamplifier in one package Parts Table

Internal filter for PCM frequency Part Carrier Frequency Improved shielding against electrical field distur- TSOP1130KA1 30 k Hz bance

TSOP1133KA1 33 k Hz

TTL and CMOS compatibility

TSOP1136KA1 36 k Hz

Output active low

TSOP1137KA1 36.7 k Hz

Low power consumption

TSOP1138KA1 38 k Hz High immunity against ambient light ir cu it TSOP1140KA1 40 k Hz TSOP1156KA1 56 k Hz

Special Features Enhanced data rate up to 4000 bit/s

Application Circuit

Operation with short bursts possible (≥ 6 cycles/ burst)

Transmitter TSOPxxxx

Block Diagram

with VS +VS

TSALxxxx

VS GND GND

R1 C1 recommended to suppress power supply

Band OUTDemo-

disturbances.

Pass AGCInput dulator

The output voltage should not be hold continuously at voltage below VO 3.3 by the external circuit.

PIN Control Circuit GND

Document Number 82007 www.vishay.com Rev. 9, 15-Oct-2002

Page Summary Contents For Vishay TSOP11..KA1 Data Sheet

Page 1 查询TSOP1130KA1供应商 TSOP11..KA1 VISHAY Vishay Semiconductors IR Receiver Modules for Remote Control Systems Description The TSOP11..KA1 - series are miniaturized receivers for infrared remote control sys...
Page 2 VISHAYTSOP11..KA1 Vishay Semiconductors Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Parameter Test condition Symbol Value Unit Supply Voltage (Pin 2) VS - 0.3 to + Supply Current...
Page 3 TSOP11..KA1 VISHAY Vishay Semiconductors ,T ut pu t P ul se id th / E el . R es po ns iv ity on of in Optical Test Signal Ee Correlation with ambient light sources: 3.5 10W/m21.4klx (Std.illum.A,T=28...
Page 4 VISHAYTSOP11..KA1 hr es ho ld Ir ra di an ce /m ax . E nv el op ut yc le el at iv pe ct ra l S en si tiv ity in re Vishay Semiconductors f = 38 k Hz, Ee = 2 m W/m2 Burst Length ( number of cycles / bu...
Page 5 TSOP11..KA1 VISHAY Vishay Semiconductors IR ig na data stream. This gap time should have at least same length as the burst. • Up to 2200 short bursts per second can be received continuously. Some exam...
Page 6 VISHAYTSOP11..KA1 Vishay Semiconductors Package Dimensions in mm Document Number 82007 www.vishay.com Rev. 9, 15-Oct-2002
Page 7 TSOP11..KA1 VISHAY Vishay Semiconductors Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statuto...
Page 8 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
