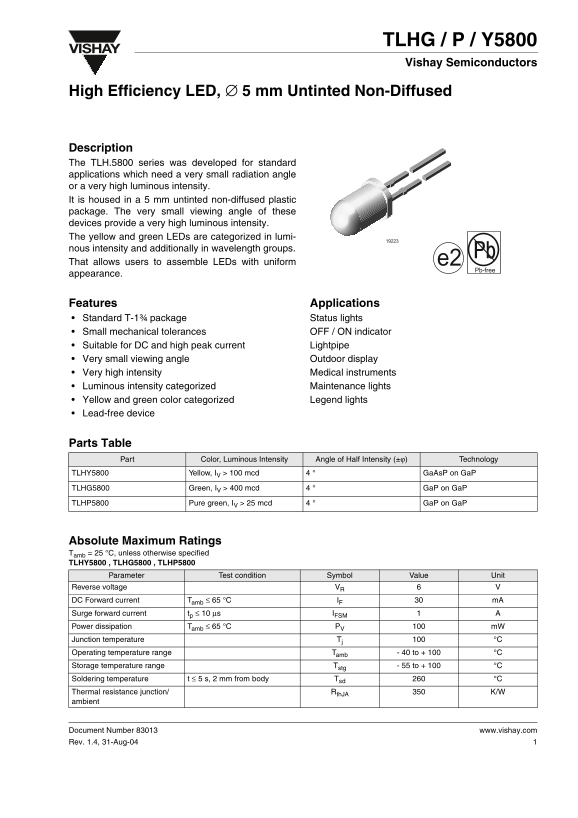

TLHG / P / Y5800
VISHAY
Vishay Semiconductors
High Efficiency LED, ∅ 5 mm Untinted Non-Diffused
Description The TLH.5800 series was developed for standard applications which need a very small radiation angle or a very high luminous intensity. It is housed in a 5 mm untinted non-diffused plastic package. The very small viewing angle of these devices provide a very high luminous intensity. The yellow and green LEDs are categorized in lumi- nous intensity and additionally in wavelength groups.
That allows users to assemble LEDs with uniform e2
Pb-free
appearance.
Features Applications Standard T-1¾ package Status lights Small mechanical tolerances OFF / ON indicator Suitable for DC and high peak current Lightpipe Very small viewing angle Outdoor display Very high intensity Medical instruments Luminous intensity categorized Maintenance lights Yellow and green color categorized Legend lights Lead-free device
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLHY5800 Yellow, IV > 100 mcd Ga As P on Ga P
TLHG5800 Green, IV > 400 mcd Ga P on Ga P
TLHP5800 Pure green, IV > 25 mcd Ga P on Ga P
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified TLHY5800 , TLHG5800 , TLHP5800
Parameter Test condition Symbol Value Unit
Reverse voltage VR
DC Forward current Tamb ≤ 65 °C IF m A
Surge forward current tp ≤ 10 µs IFSM
Power dissipation Tamb ≤ 65 °C PV m W
Junction temperature Tj °C
Operating temperature range Tamb - 40 to + 100 °C Storage temperature range Tstg - 55 to + 100 °C
Soldering temperature t ≤ 5 s, 2 mm from body Tsd °C
Thermal resistance junction/ Rth JA K/W
ambient
Document Number 83013 www.vishay.com Rev. 1.4, 31-Aug-04
Page Summary Contents For Vishay TLHG-P Y5800 High Efficiency LED, Ø 5mm Untinted Non-Diffused User Manual and Specifications
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 8 |
| File Size | 255.21 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the standard applications for this LED series?
It is suitable for status lights, indicator lights (OFF/ON), lightpipes, outdoor displays, medical instruments, maintenance lights, and legend lights.
What types of color options are available in this series?
Yellow, green, and pure green LEDs are offered, with different luminous intensity levels specified by the model number.
Are there any restrictions on operating temperature or voltage?
The device has an operating temperature range of -40 to +100°C ambient and a maximum reverse voltage (V_R) rating of 615 V.
