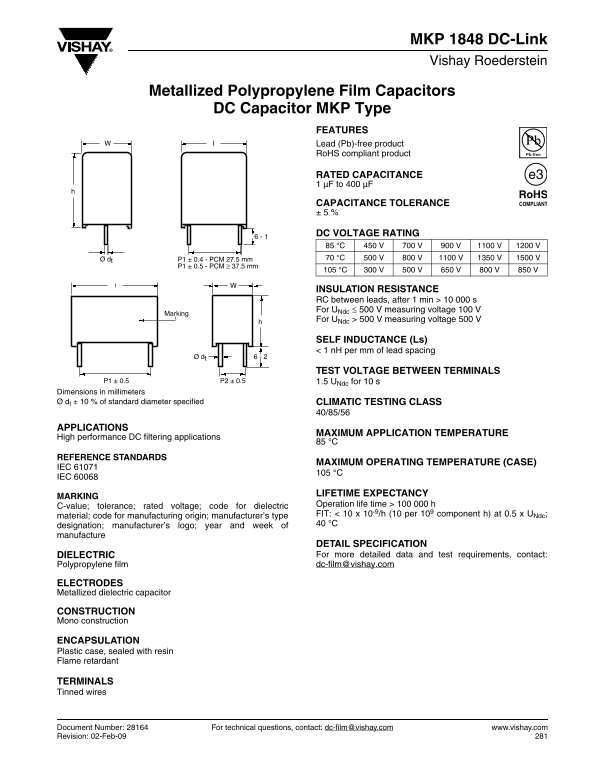

Vishay Roederstein MKP 1848 DC-Link Metallized Polypropylene Film Capacitors User Manual and Specifications - DC Capacitor, MKP Type.

MKP 1848 DC-Link Vishay Roederstein

Metallized Polypropylene Film Capacitors

DC Capacitor MKP Type

FEATURES Lead (Pb)-free product Ro HS compliant product

RATED CAPACITANCE 1 µF to 400 µF

CAPACITANCE TOLERANCE ± 5 %

DC VOLTAGE RATING

85 °C 450 V 700 V 900 V 1100 V 1200 V Ø dt P1 ± 0.4 - PCM 27.5 mm 70 °C 500 V 800 V 1100 V 1350 V 1500 V

P1 ± 0.5 - PCM ≥ 37.5 mm

INSULATION RESISTANCE RC between leads, after 1 min > 10 000 s For UNdc ≤ 500 V measuring voltage 100 V

Marking

For UNdc > 500 V measuring voltage 500 V

SELF INDUCTANCE (Ls) < 1 n H per mm of lead spacing

Ø dt 6 - 2

TEST VOLTAGE BETWEEN TERMINALS

P1 ± 0.5 P2 ± 0.5 1.5 UNdc for 10 s

Dimensions in millimeters Ø dt ± 10 % of standard diameter specified CLIMATIC TESTING CLASS

APPLICATIONS

MAXIMUM APPLICATION TEMPERATURE

High performance DC filtering applications

REFERENCE STANDARDS

MAXIMUM OPERATING TEMPERATURE (CASE)

IEC 61071

IEC 60068

LIFETIME EXPECTANCY

MARKING

C-value; tolerance; rated voltage; code for dielectric Operation life time > 100 000 h material; code for manufacturing origin; manufacturer’s type FIT: < 10 x 10-9/h (10 per 109 component h) at 0.5 x UNdc; designation; manufacturer’s logo; year and week of 40 °C

manufacture

DETAIL SPECIFICATION DIELECTRIC For more detailed data and test requirements, contact: Polypropylene film [email protected]

ELECTRODES Metallized dielectric capacitor

CONSTRUCTION Mono construction

ENCAPSULATION Plastic case, sealed with resin Flame retardant

TERMINALS Tinned wires

Document Number: 28164 For technical questions, contact: [email protected] www.vishay.com Revision: 02-Feb-09
