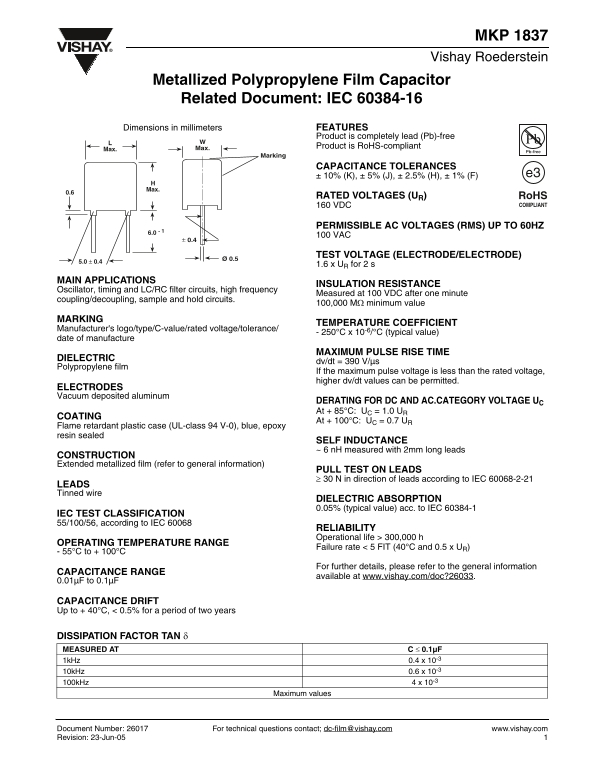

MKP 1837 Vishay Roederstein
Metallized Polypropylene Film Capacitor Related Document: IEC 60384-16 Dimensions in millimeters FEATURES
Product is completely lead (Pb)-free Max. Product is Ro HS-compliant
Marking
CAPACITANCE TOLERANCES
Max.0.6
RATED VOLTAGES (UR) Ro HS
160 VDC COMPLIANT
PERMISSIBLE AC VOLTAGES (RMS) UP TO 60HZ
100 VAC
TEST VOLTAGE (ELECTRODE/ELECTRODE)
1.6 x UR for 2 s
MAIN APPLICATIONS
INSULATION RESISTANCE
Oscillator, timing and LC/RC filter circuits, high frequency
Measured at 100 VDC after one minute
coupling/decoupling, sample and hold circuits.
100,000 MΩ minimum value
MARKING
TEMPERATURE COEFFICIENT
Manufacturer's logo/type/C-value/rated voltage/tolerance/
- 250°C x 10-6/°C (typical value)
date of manufacture
MAXIMUM PULSE RISE TIME
DIELECTRIC
dv/dt = 390 V/µs
Polypropylene film
If the maximum pulse voltage is less than the rated voltage, higher dv/dt values can be permitted.
ELECTRODES Vacuum deposited aluminum
DERATING FOR DC AND AC.CATEGORY VOLTAGE UC At + 85°C: UC = 1.0 UR
COATING
At + 100°C: UC = 0.7 UR
Flame retardant plastic case (UL-class 94 V-0), blue, epoxy resin sealed
SELF INDUCTANCE ~ 6 n H measured with 2mm long leads
CONSTRUCTION Extended metallized film (refer to general information)
PULL TEST ON LEADS ≥ 30 N in direction of leads according to IEC 60068-2-21
LEADS Tinned wire
DIELECTRIC ABSORPTION 0.05% (typical value) acc. to IEC 60384-1
IEC TEST CLASSIFICATION 55/100/56, according to IEC 60068
RELIABILITY Operational life > 300,000 h
OPERATING TEMPERATURE RANGE
Failure rate < 5 FIT (40°C and 0.5 x UR)
- 55°C to + 100°C
For further details, please refer to the general information
CAPACITANCE RANGE
available at www.vishay.com/doc?26033.
0.01µF to 0.1µF
CAPACITANCE DRIFT Up to + 40°C, < 0.5% for a period of two years
DISSIPATION FACTOR TAN δ MEASURED AT C ≤ 0.1µF 1k Hz 0.4 x 10-3 10k Hz 0.6 x 10-3 100k Hz 4 x 10-3
Maximum values
Document Number: 26017 For technical questions contact; [email protected] www.vishay.com
Revision: 23-Jun-05
