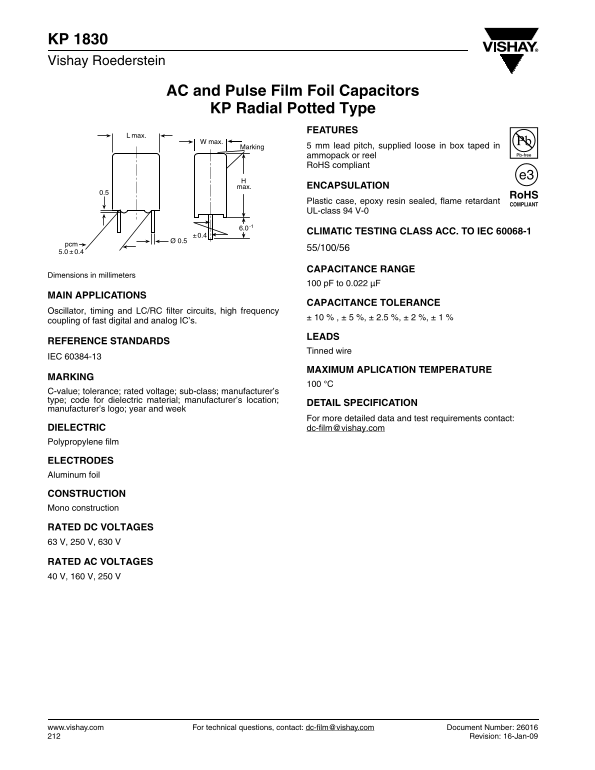

KP 1830 Vishay Roederstein
AC and Pulse Film Foil Capacitors KP Radial Potted Type
FEATURES
L max.
W max.
Marking 5 mm lead pitch, supplied loose in box taped in ammopack or reel Ro HS compliant
max. ENCAPSULATION
Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0
CLIMATIC TESTING CLASS ACC. TO IEC 60068-1
CAPACITANCE RANGE
Dimensions in millimeters
100 p F to 0.022 µF
MAIN APPLICATIONS
CAPACITANCE TOLERANCE
Oscillator, timing and LC/RC filter circuits, high frequency
coupling of fast digital and analog IC’s.
LEADS
REFERENCE STANDARDS
Tinned wire
IEC 60384-13
MAXIMUM APLICATION TEMPERATURE
MARKING
C-value; tolerance; rated voltage; sub-class; manufacturer’s type; code for dielectric material; manufacturer’s location;
DETAIL SPECIFICATION
manufacturer’s logo; year and week
For more detailed data and test requirements contact:
DIELECTRIC [email protected] Polypropylene film
ELECTRODES Aluminum foil
CONSTRUCTION Mono construction
RATED DC VOLTAGES 63 V, 250 V, 630 V
RATED AC VOLTAGES 40 V, 160 V, 250 V
www.vishay.com For technical questions, contact: [email protected] Document Number: 26016
Revision: 16-Jan-09
