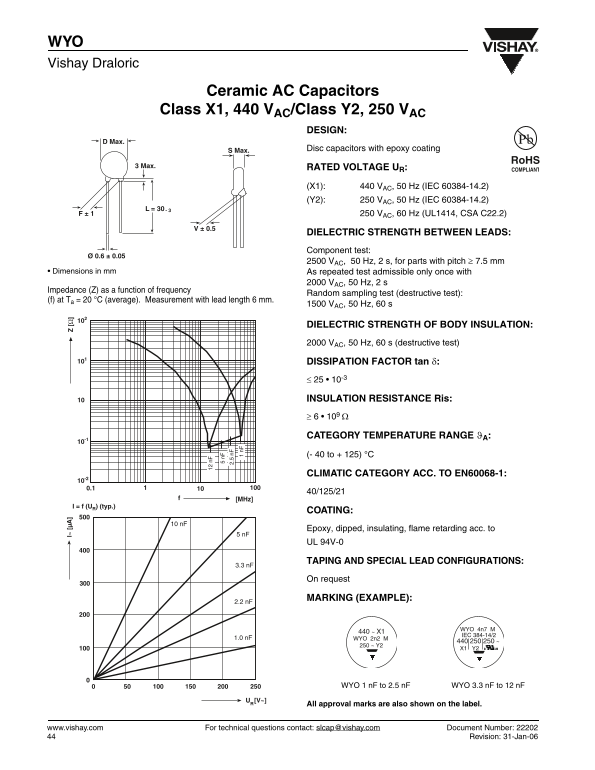

WYO Vishay Draloric
Ceramic AC Capacitors Class X1, 440 VAC/Class Y2, 250 VAC
DESIGN:
D Max.
S Max. Disc capacitors with epoxy coating
Ro HS
3 Max. RATED VOLTAGE UR:
COMPLIANT
(X1): 440 VAC, 50 Hz (IEC 60384-14.2) (Y2): 250 VAC, 50 Hz (IEC 60384-14.2)
F ± 1 250 VAC, 60 Hz (UL1414, CSA C22.2)
2. DIELECTRIC STRENGTH BETWEEN LEADS: n F n F Component test:
2500 VAC, 50 Hz, 2 s, for parts with pitch ≥ 7.5 mm
• Dimensions in mm As repeated test admissible only once with
2000 VAC, 50 Hz, 2 s
Impedance (Z) as a function of frequency
Random sampling test (destructive test):
(f) at Ta = 20 °C (average). Measurement with lead length 6 mm.
1500 VAC, 50 Hz, 60 s
DIELECTRIC STRENGTH OF BODY INSULATION:
2000 VAC, 50 Hz, 60 s (destructive test)
DISSIPATION FACTOR tan δ:
INSULATION RESISTANCE Ris:
CATEGORY TEMPERATURE RANGE ϑA:
(- 40 to + 125) °C
CLIMATIC CATEGORY ACC. TO EN60068-1:
[MHz]
I = f (UR) (typ.)
COATING:
Epoxy, dipped, insulating, flame retarding acc. to
UL 94V-0
TAPING AND SPECIAL LEAD CONFIGURATIONS:
On request
MARKING (EXAMPLE):
WYO 4n7 M
IEC 384-14/2
1.0 n F WYO 2n2 M
WYO 1 n F to 2.5 n F WYO 3.3 n F to 12 n F
All approval marks are also shown on the label.
www.vishay.com For technical questions contact: [email protected] Document Number: 22202
Revision: 31-Jan-06
