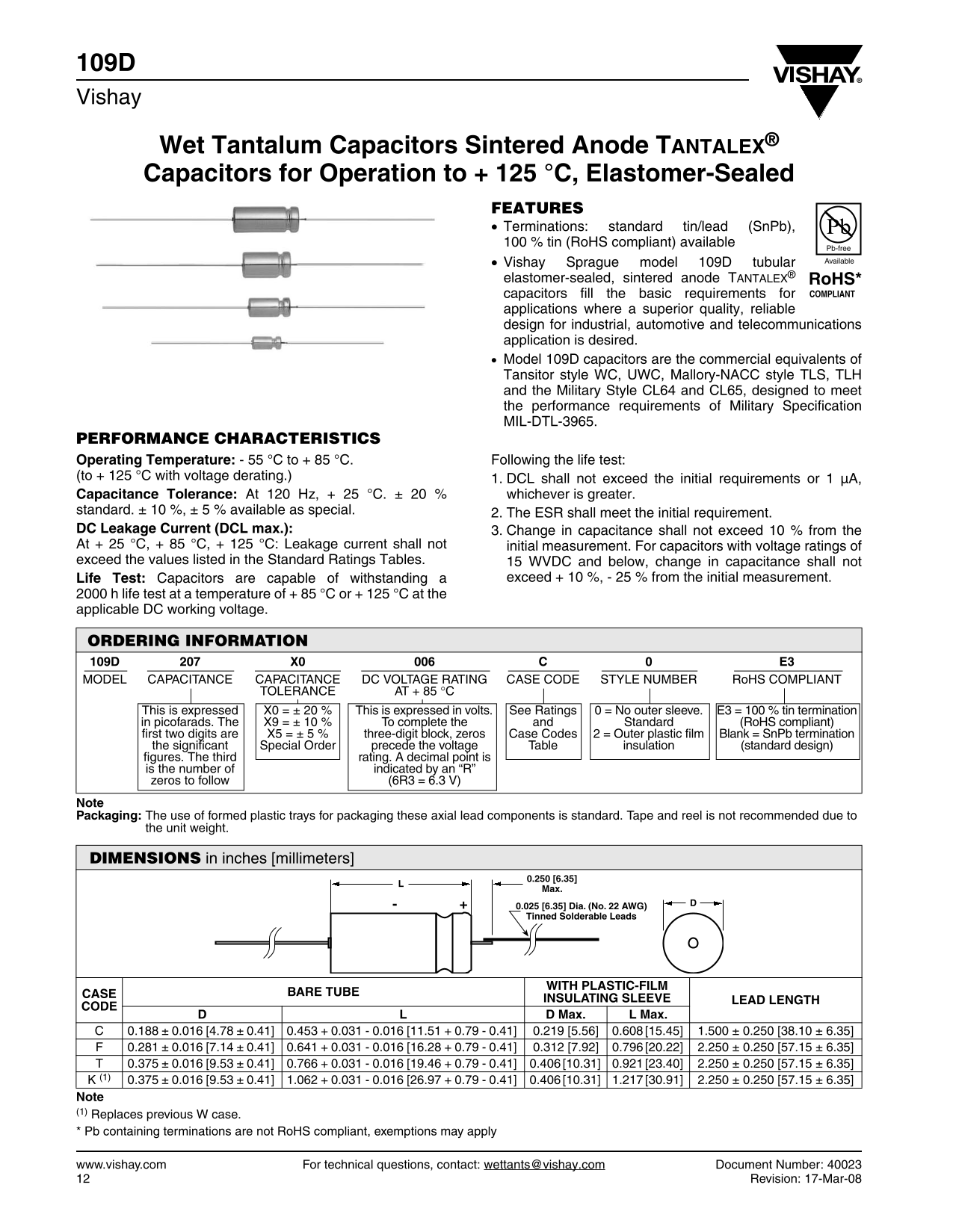

109D Vishay

Wet Tantalum Capacitors Sintered Anode TANTALEX® Capacitors for Operation to + 125 °C, Elastomer-Sealed

FEATURES Terminations: standard tin/lead (Sn Pb), 100 % tin (Ro HS compliant) available

Pb-free

Vishay Sprague model 109D tubular Available

elastomer-sealed, sintered anode TANTALEX® Ro HS*

capacitors fill the basic requirements for COMPLIANT

applications where a superior quality, reliable design for industrial, automotive and telecommunications application is desired. Model 109D capacitors are the commercial equivalents of Tansitor style WC, UWC, Mallory-NACC style TLS, TLH and the Military Style CL64 and CL65, designed to meet the performance requirements of Military Specification MIL-DTL-3965.

PERFORMANCE CHARACTERISTICS

Operating Temperature: - 55 °C to + 85 °C. Following the life test:

(to + 125 °C with voltage derating.) 1. DCL shall not exceed the initial requirements or 1 µA,

Capacitance Tolerance: At 120 Hz, + 25 °C. ± 20 % whichever is greater.

standard. ± 10 %, ± 5 % available as special. 2. The ESR shall meet the initial requirement. DC Leakage Current (DCL max.): 3. Change in capacitance shall not exceed 10 % from the At + 25 °C, + 85 °C, + 125 °C: Leakage current shall not initial measurement. For capacitors with voltage ratings of exceed the values listed in the Standard Ratings Tables. 15 WVDC and below, change in capacitance shall not

Life Test: Capacitors are capable of withstanding a exceed + 10 %, - 25 % from the initial measurement.

2000 h life test at a temperature of + 85 °C or + 125 °C at the applicable DC working voltage.

ORDERING INFORMATION 109D X0 E3 MODEL CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE CODE STYLE NUMBER Ro HS COMPLIANT

TOLERANCE AT + 85 °C

This is expressed X0 = ± 20 % This is expressed in volts. See Ratings 0 = No outer sleeve. E3 = 100 % tin termination in picofarads. The X9 = ± 10 % To complete the and Standard (Ro HS compliant) first two digits are X5 = ± 5 % three-digit block, zeros Case Codes 2 = Outer plastic film Blank = Sn Pb termination the significant Special Order precede the voltage Table insulation (standard design)

figures. The third rating. A decimal point is is the number of indicated by an “R” zeros to follow (6R3 = 6.3 V)

Note Packaging: The use of formed plastic trays for packaging these axial lead components is standard. Tape and reel is not recommended due to

the unit weight.

DIMENSIONS in inches [millimeters]

0.250 [6.35] Max.L

- + 0.025 [6.35] Dia. (No. 22 AWG)

Tinned Solderable Leads

CASE BARE TUBE WITH PLASTIC-FILM

INSULATING SLEEVE LEAD LENGTH

D L D Max. L Max.

C 0.188 ± 0.016 [4.78 ± 0.41] 0.453 + 0.031 - 0.016 [11.51 + 0.79 - 0.41] 0.219 [5.56] 0.608 [15.45] 1.500 ± 0.250 [38.10 ± 6.35] F 0.281 ± 0.016 [7.14 ± 0.41] 0.641 + 0.031 - 0.016 [16.28 + 0.79 - 0.41] 0.312 [7.92] 0.796 [20.22] 2.250 ± 0.250 [57.15 ± 6.35] T 0.375 ± 0.016 [9.53 ± 0.41] 0.766 + 0.031 - 0.016 [19.46 + 0.79 - 0.41] 0.406 [10.31] 0.921 [23.40] 2.250 ± 0.250 [57.15 ± 6.35] K (1) 0.375 ± 0.016 [9.53 ± 0.41] 1.062 + 0.031 - 0.016 [26.97 + 0.79 - 0.41] 0.406 [10.31] 1.217 [30.91] 2.250 ± 0.250 [57.15 ± 6.35] Note (1) Replaces previous W case. * Pb containing terminations are not Ro HS compliant, exemptions may apply

www.vishay.com For technical questions, contact: [email protected] Document Number: 40023

Revision: 17-Mar-08
