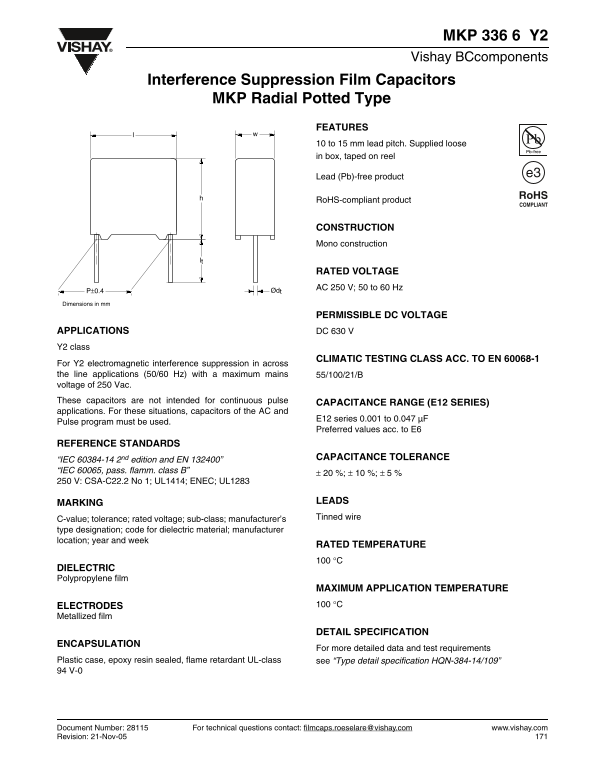

MKP 336 6 Y2 Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES
168x12(halfpage)
to mm lead pitch. Supplied loose in box, taped on reel
Lead (Pb)-free product
Ro HS
Ro HS-compliant product
COMPLIANT
CONSTRUCTION Mono construction
RATED VOLTAGE AC V; 50 to Hz
P±0.4 Ødt
Dimensions in mm
PERMISSIBLE DC VOLTAGE
APPLICATIONS DC Y2 class
CLIMATIC TESTING CLASS ACC. TO EN 60068-1
For Y2 electromagnetic interference suppression in across the line applications (50/60 Hz) with a maximum mains 55/100/21/B voltage of 250 Vac. These capacitors are not intended for continuous pulse
CAPACITANCE RANGE (E12 SERIES)
applications. For these situations, capacitors of the AC and
E12 series 0.001 to 0.047 µF
Pulse program must be used.
Preferred values acc. to E6
REFERENCE STANDARDS
CAPACITANCE TOLERANCE
“IEC 60384-14 2nd edition and EN 132400” “IEC 60065, pass. flamm. class B”
V: CSA-C22.2 No 1; UL1414; ENEC; UL1283
MARKING LEADS C-value; tolerance; rated voltage; sub-class; manufacturer’s Tinned wire
type designation; code for dielectric material; manufacturer location; year and week
RATED TEMPERATURE °C
DIELECTRIC Polypropylene film
MAXIMUM APPLICATION TEMPERATURE ELECTRODES °C
Metallized film
DETAIL SPECIFICATION
ENCAPSULATION
For more detailed data and test requirements
Plastic case, epoxy resin sealed, flame retardant UL-class see “Type detail specification HQN-384-14/109” V-0
Document Number: 28115 For technical questions contact: [email protected] www.vishay.com
Revision: 21-Nov-05
