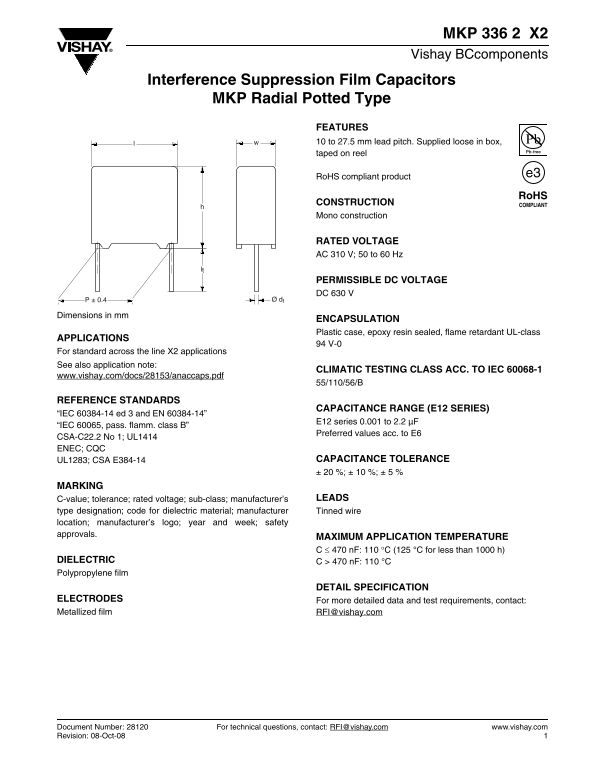

Page 1 Text Content
MKP 336 2 X2 Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES 168x12(halfpage) l w to 27.5 mm lead pitch. Supplied loose in box, taped on reel
Ro HS compliant product
Ro HS
CONSTRUCTION COMPLIANT Mono construction
RATED VOLTAGE AC V; 50 to Hz
PERMISSIBLE DC VOLTAGE DC
P ± 0.4 Ø dt
Dimensions in mm
ENCAPSULATION Plastic case, epoxy resin sealed, flame retardant UL-class
APPLICATIONS
For standard across the line X2 applications See also application note:
CLIMATIC TESTING CLASS ACC. TO IEC 60068-1
www.vishay.com/docs/28153/anaccaps.pdf
REFERENCE STANDARDS
CAPACITANCE RANGE (E12 SERIES)
“IEC 60384-14 ed 3 and EN 60384-14”
E12 series 0.001 to 2.2 µF
“IEC 60065, pass. flamm. class B”
Preferred values acc. to E6
CSA-C22.2 No 1; UL1414 ENEC; CQC
UL1283; CSA E384-14 CAPACITANCE TOLERANCE ± 20 %; ± 10 %; ± 5 %
MARKING
C-value; tolerance; rated voltage; sub-class; manufacturer’s LEADS
type designation; code for dielectric material; manufacturer Tinned wire location; manufacturer’s logo; year and week; safety approvals.
MAXIMUM APPLICATION TEMPERATURE C ≤ 470 n F: 110 °C (125 °C for less than 1000 h)
DIELECTRIC C > 470 n F: 110 °C Polypropylene film
DETAIL SPECIFICATION
ELECTRODES For more detailed data and test requirements, contact: Metallized film [email protected]
Document Number: 28120 For technical questions, contact: [email protected] www.vishay.com
Revision: 08-Oct-08
Page Summary Contents For Vishay MKP 336 2 X2 User Guide and Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 17 |
| File Size | 216.21 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum permissible DC voltage for this capacitor?
The permissible DC voltage is 630 V.
What flammability class does this capacitor meet?
It meets UL-class AP and has a flame retardant epoxy resin seal, passing UL 94 V-0 requirements.
What are the maximum operating temperatures for different capacitance ranges?
The max temperature is 110 °C for most applications, but it can handle 125 °C if used for less than 1000 hours in certain ranges.
Are these capacitors available loose or mounted on reels?
They are supplied both loose in a box and taped on a reel, with specific lead length guidelines provided for each option.
