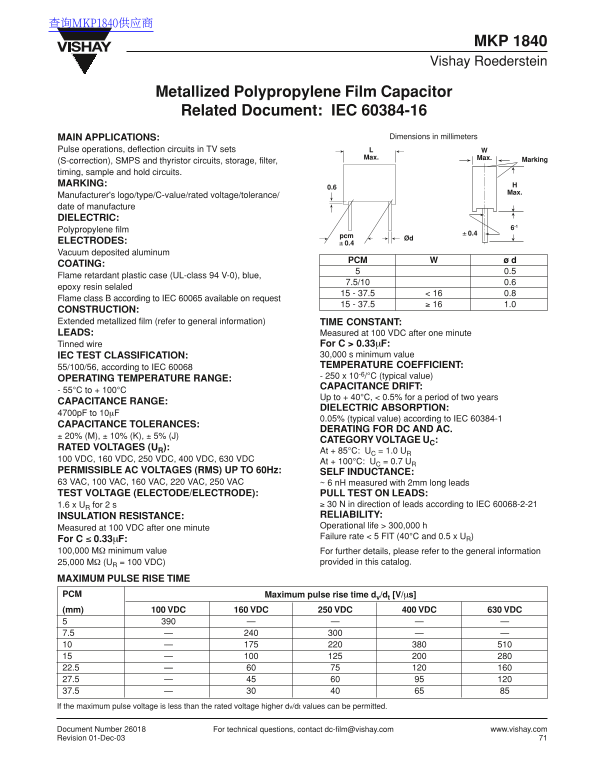

MKP 1840 Vishay Roederstein

Metallized Polypropylene Film Capacitor Related Document: IEC 60384-16

MAIN APPLICATIONS: Dimensions in millimeters

Pulse operations, deflection circuits in TV sets

Max. Max.

(S-correction), SMPS and thyristor circuits, storage, filter, Marking

timing, sample and hold circuits. MARKING:

Manufacturer's logo/type/C-value/rated voltage/tolerance/ date of manufacture DIELECTRIC:

Polypropylene film

ELECTRODES: ± 0.4 Vacuum deposited aluminum

PCM ø d

COATING:

Flame retardant plastic case (UL-class 94 V-0), blue,

epoxy resin selaled

Flame class B according to IEC 60065 available on request

CONSTRUCTION: Extended metallized film (refer to general information) TIME CONSTANT: LEADS: Measured at 100 VDC after one minute

Tinned wire For C > 0.33µF: IEC TEST CLASSIFICATION: 30,000 s minimum value 55/100/56, according to IEC 60068 TEMPERATURE COEFFICIENT: - 250 x 10-6/°C (typical value)

OPERATING TEMPERATURE RANGE:

CAPACITANCE DRIFT:

- 55°C to + 100°C

Up to + 40°C, < 0.5% for a period of two years

CAPACITANCE RANGE:

DIELECTRIC ABSORPTION:

4700p F to 10µF

0.05% (typical value) according to IEC 60384-1

CAPACITANCE TOLERANCES:

DERATING FOR DC AND AC.

CATEGORY VOLTAGE UC:

RATED VOLTAGES (UR):

At + 85°C: UC = 1.0 UR

100 VDC, 160 VDC, 250 VDC, 400 VDC, 630 VDC

At + 100°C: UC = 0.7 UR

PERMISSIBLE AC VOLTAGES (RMS) UP TO 60Hz: SELF INDUCTANCE: 63 VAC, 100 VAC, 160 VAC, 220 VAC, 250 VAC ~ 6 n H measured with 2mm long leads TEST VOLTAGE (ELECTODE/ELECTRODE): PULL TEST ON LEADS:

1.6 x UR for 2 s ≥ 30 N in direction of leads according to IEC 60068-2-21 INSULATION RESISTANCE: RELIABILITY: Operational life > 300,000 h

Measured at 100 VDC after one minute

Failure rate < 5 FIT (40°C and 0.5 x UR)

For C ≤ 0.33µF: 100,000 MΩ minimum value For further details, please refer to the general information

25,000 MΩ (UR = 100 VDC) provided in this catalog.

MAXIMUM PULSE RISE TIME PCM Maximum pulse rise time dv/dt [V/µs] (mm) 100 VDC 160 VDC 250 VDC 400 VDC 630 VDC

22.5 27.5 37.5 If the maximum pulse voltage is less than the rated voltage higher dv/dt values can be permitted.
