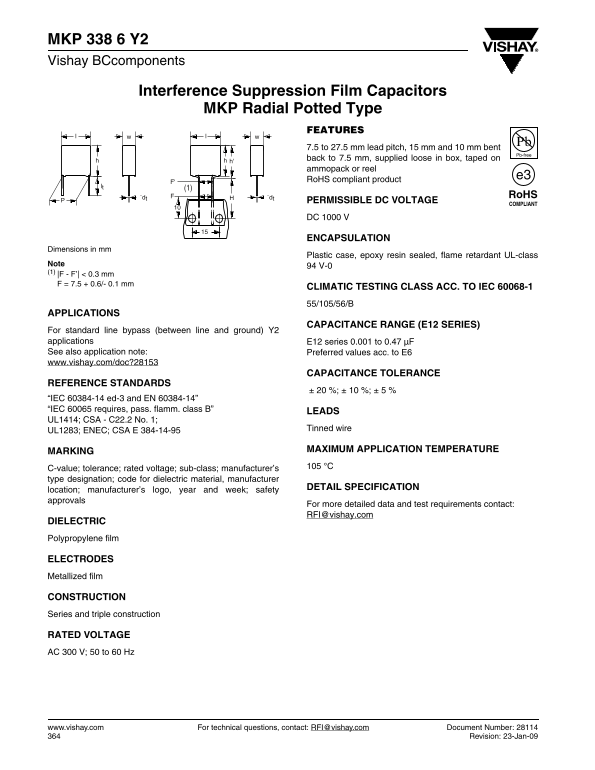

MKP 338 6 Y2 Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES
168x12(halfpage)
7.5 to 27.5 mm lead pitch, 15 mm and 10 mm bent back to 7.5 mm, supplied loose in box, taped on
ammopack or reel F' Ro HS compliant product
¯dt ¯dt HF
PERMISSIBLE DC VOLTAGE DC
ENCAPSULATION
Dimensions in mm
Plastic case, epoxy resin sealed, flame retardant UL-class
(1) |F F’| < 0.3 mm 7.5 + 0.6/- 0.1 mm
CLIMATIC TESTING CLASS ACC. TO IEC 60068-1 55/105/56/B
APPLICATIONS
CAPACITANCE RANGE (E12 SERIES)
For standard line bypass (between line and ground) Y2 applications E12 series 0.001 to 0.47 µF See also application note: Preferred values acc. to E6 www.vishay.com/doc?28153
CAPACITANCE TOLERANCE
REFERENCE STANDARDS
“IEC 60384-14 ed-3 and EN 60384-14” “IEC 60065 requires, pass. flamm. class B”
LEADS
UL1414; CSA - C22.2 No. 1;
UL1283; ENEC; CSA E 384-14-95 Tinned wire
MARKING MAXIMUM APPLICATION TEMPERATURE C-value; tolerance; rated voltage; sub-class; manufacturer’s °C
type designation; code for dielectric material, manufacturer
DETAIL SPECIFICATION
location; manufacturer’s logo, year and week; safety approvals
For more detailed data and test requirements contact: [email protected]
DIELECTRIC Polypropylene film
ELECTRODES Metallized film
CONSTRUCTION Series and triple construction
RATED VOLTAGE AC V; 50 to Hz
www.vishay.com For technical questions, contact: [email protected] Document Number: 28114
Revision: 23-Jan-09
