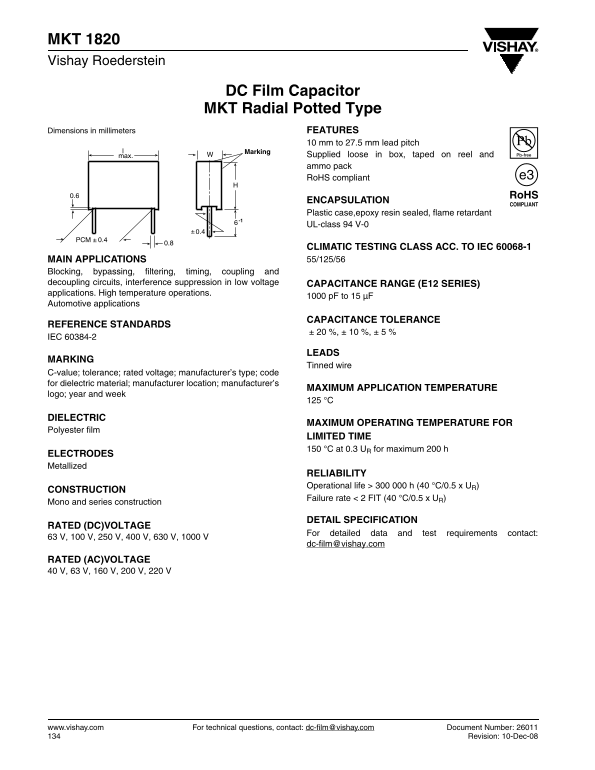

MKT 1820 Vishay Roederstein
DC Film Capacitor MKT Radial Potted Type
Dimensions in millimeters FEATURES
10 mm to 27.5 mm lead pitch
Marking
max. Supplied loose in box, taped on reel and ammo pack Ro HS compliant
ENCAPSULATION Plastic case,epoxy resin sealed, flame retardant
UL-class 94 V-0
PCM ± 0.4
CLIMATIC TESTING CLASS ACC. TO IEC 60068-1 MAIN APPLICATIONS 55/125/56
Blocking, bypassing, filtering, timing, coupling and decoupling circuits, interference suppression in low voltage CAPACITANCE RANGE (E12 SERIES) applications. High temperature operations.
1000 p F to 15 µF
Automotive applications
CAPACITANCE TOLERANCE
REFERENCE STANDARDS
IEC 60384-2
LEADS
MARKING
Tinned wire
C-value; tolerance; rated voltage; manufacturer’s type; code for dielectric material; manufacturer location; manufacturer’s
MAXIMUM APPLICATION TEMPERATURE
logo; year and week
DIELECTRIC
MAXIMUM OPERATING TEMPERATURE FOR
Polyester film
LIMITED TIME 150 °C at 0.3 UR for maximum 200 h
ELECTRODES Metallized
RELIABILITY Operational life > 300 000 h (40 °C/0.5 x UR)
CONSTRUCTION
Failure rate < 2 FIT (40 °C/0.5 x UR)
Mono and series construction
DETAIL SPECIFICATION
RATED (DC)VOLTAGE
For detailed data and test requirements contact:
RATED (AC)VOLTAGE 40 V, 63 V, 160 V, 200 V, 220 V
www.vishay.com For technical questions, contact: [email protected] Document Number: 26011
Revision: 10-Dec-08
