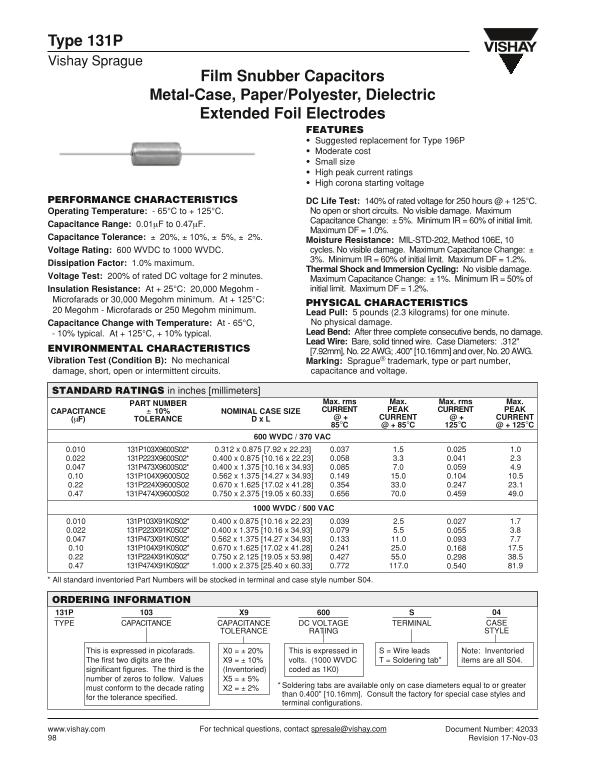

Vishay Type 131P Data Sheet

Type 131P Vishay Sprague

Film Snubber Capacitors Metal-Case, Paper/Polyester, Dielectric Extended Foil Electrodes

FEATURES Suggested replacement for Type 196P Moderate cost Small size High peak current ratings • High corona starting voltage

PERFORMANCE CHARACTERISTICS DC Life Test: 140% of rated voltage for 250 hours @ + 125°C.

Operating Temperature: - 65°C to + 125°C. No open or short circuits. No visible damage. Maximum Capacitance Change: ± 5%. Minimum IR = 60% of initial limit.

Capacitance Range: 0.01µF to 0.47µF.

Maximum DF = 1.0%.

Capacitance Tolerance: ± 20%, ± 10%, ± 5%, ± 2%.

Moisture Resistance: MIL-STD-202, Method 106E, 10 Voltage Rating: 600 WVDC to 1000 WVDC. cycles. No visible damage. Maximum Capacitance Change: ± 3%. Minimum IR = 60% of initial limit. Maximum DF = 1.2%.

Dissipation Factor: 1.0% maximum.

Thermal Shock and Immersion Cycling: No visible damage.

Voltage Test: 200% of rated DC voltage for 2 minutes.

Maximum Capacitance Change: ± 1%. Minimum IR = 50% of Insulation Resistance: At + 25°C: 20,000 Megohm - initial limit. Maximum DF = 1.2%.

Microfarads or 30,000 Megohm minimum. At + 125°C:

PHYSICAL CHARACTERISTICS

20 Megohm - Microfarads or 250 Megohm minimum.

Lead Pull: 5 pounds (2.3 kilograms) for one minute. Capacitance Change with Temperature: At - 65°C, No physical damage. - 10% typical. At + 125°C, + 10% typical. Lead Bend: After three complete consecutive bends, no damage. Lead Wire: Bare, solid tinned wire. Case Diameters: .312"

ENVIRONMENTAL CHARACTERISTICS

[7.92mm], No. 22 AWG; .400" [10.16mm] and over, No. 20 AWG.

Vibration Test (Condition B): No mechanical Marking: Sprague® trademark, type or part number,

damage, short, open or intermittent circuits. capacitance and voltage.

STANDARD RATINGS in inches [millimeters]

PART NUMBER Max. rms Max. Max. rms Max. CAPACITANCE 10% NOMINAL CASE SIZE CURRENT PEAK CURRENT PEAK (µF) TOLERANCE D x L @ + CURRENT @ + CURRENT 85°C @ + 85°C 125°C @ + 125°C

600 WVDC / 370 VAC

1000 WVDC / 500 VAC

* All standard inventoried Part Numbers will be stocked in terminal and case style number S04.

ORDERING INFORMATION 131P X9

TYPE CAPACITANCE CAPACITANCE DC VOLTAGE TERMINAL CASE TOLERANCE RATING STYLE

This is expressed in picofarads. X0 = ± 20% This is expressed in S = Wire leads Note: Inventoried The first two digits are the X9 = ± 10% volts. (1000 WVDC T = Soldering tab* items are all S04. significant figures. The third is the (Inventoried) coded as 1K0) number of zeros to follow. Values X5 = ± 5%

Soldering tabs are available only on case diameters equal to or greater

must conform to the decade rating X2 = ± 2%

than 0.400" [10.16mm]. Consult the factory for special case styles and

for the tolerance specified.

terminal configurations.

www.vishay.com For technical questions, contact [email protected] Document Number: 42033

Revision 17-Nov-03
