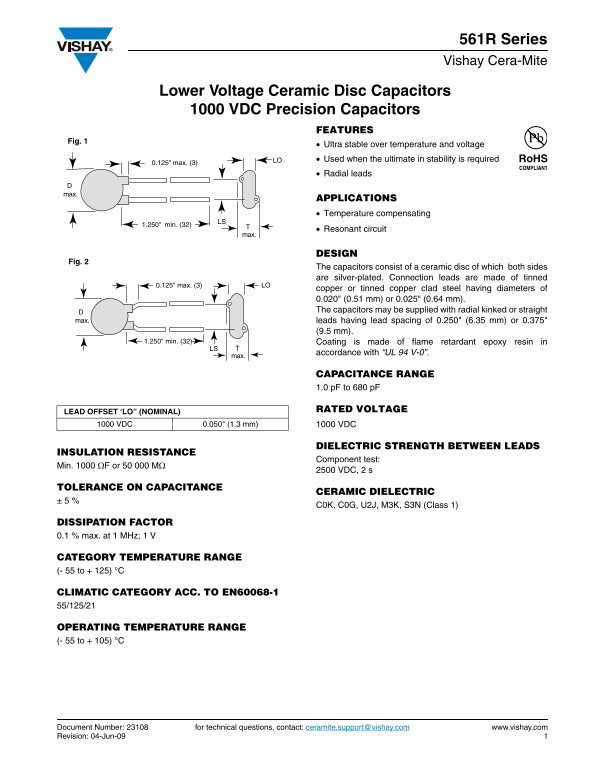

Page 1 Text Content
561R Series Vishay Cera-Mite
Lower Voltage Ceramic Disc Capacitors 1000 VDC Precision Capacitors
FEATURES
Fig. 1
Ultra stable over temperature and voltage LO Used when the ultimate in stability is required
0.125" max. (3)
Radial leads
APPLICATIONS Temperature compensating
1.250" min. (32)
Resonant circuit
DESIGN
Fig. 2
The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned
0.125" max. (3) LO
copper or tinned copper clad steel having diameters of 0.020" (0.51 mm) or 0.025" (0.64 mm). The capacitors may be supplied with radial kinked or straight
max. leads having lead spacing of 0.250" (6.35 mm) or 0.375"
(9.5 mm).
1.250" min. (32) Coating is made of flame retardant epoxy resin in
accordance with “UL 94 V-0”.
CAPACITANCE RANGE 1.0 p F to 680 p F
RATED VOLTAGE
LEAD OFFSET ‘LO” (NOMINAL)
1000 VDC 0.050" (1.3 mm) 1000 VDC
DIELECTRIC STRENGTH BETWEEN LEADS
INSULATION RESISTANCE
Component test:
Min. 1000 ΩF or 50 000 MΩ
2500 VDC, 2 s
TOLERANCE ON CAPACITANCE
CERAMIC DIELECTRIC
C0K, C0G, U2J, M3K, S3N (Class 1)
DISSIPATION FACTOR 0.1 % max. at 1 MHz; 1 V
CATEGORY TEMPERATURE RANGE (- 55 to + 125) °C
CLIMATIC CATEGORY ACC. TO EN60068-1 55/125/21
OPERATING TEMPERATURE RANGE (- 55 to + 105) °C
Document Number: 23108 for technical questions, contact: [email protected] www.vishay.com
Revision: 04-Jun-09
