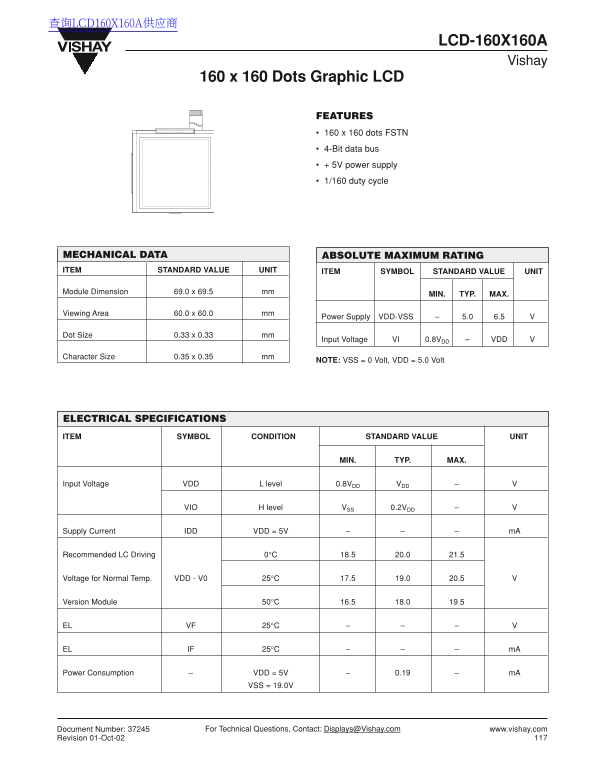

Page 1 Text Content
查询LCD160X160A供应商
LCD-160X160A
Vishay
160 x 160 Dots Graphic LCD
FEATURES 160 x 160 dots FSTN 4-Bit data bus + 5V power supply 1/160 duty cycle
MECHANICAL DATA ABSOLUTE MAXIMUM RATING ITEM STANDARD VALUE UNIT ITEM SYMBOL STANDARD VALUE UNIT
Module Dimension 69.0 x 69.5 mm
MIN. TYP. MAX.
Viewing Area 60.0 x 60.0 mm
Power Supply VDD-VSS 5.0 6.5
Dot Size 0.33 x 0.33 mm
Input Voltage VI 0.8VDD VDD
Character Size 0.35 x 0.35 mm
NOTE: VSS = 0 Volt, VDD = 5.0 Volt
ELECTRICAL SPECIFICATIONS ITEM SYMBOL CONDITION STANDARD VALUE UNIT
MIN. TYP. MAX.
Input Voltage VDD L level 0.8VDD VDD
VIO H level VSS 0.2VDD
Supply Current IDD VDD = 5V m A
Recommended LC Driving 0°C 18.5 20.0 21.5
Voltage for Normal Temp. VDD - V0 25°C 17.5 19.0 20.5
Version Module 50°C 16.5 18.0 19.5
EL VF 25°C
EL IF 25°C m A
Power Consumption VDD = 5V 0.19 m A
VSS = 19.0V
Document Number: 37245 For Technical Questions, Contact: [email protected] www.vishay.com
Revision 01-Oct-02
