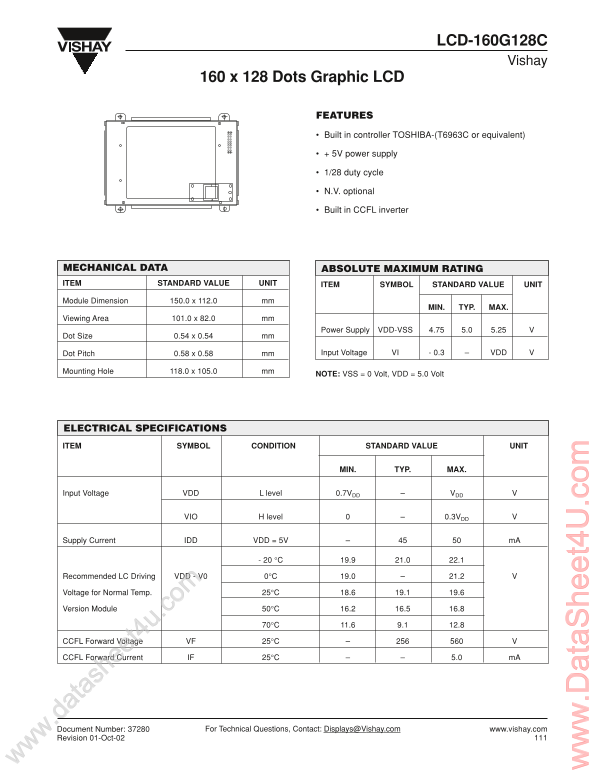

LCD-160G128C
Vishay
160 x 128 Dots Graphic LCD
FEATURES Built in controller TOSHIBA-(T6963C or equivalent)
+ 5V power supply
1/28 duty cycle
N.V. optional
Built in CCFL inverter
MECHANICAL DATA ABSOLUTE MAXIMUM RATING ITEM STANDARD VALUE UNIT ITEM SYMBOL STANDARD VALUE UNIT
Module Dimension 150.0 x 112.0 mm
MIN. TYP. MAX.
Viewing Area 101.0 x 82.0 mm
Power Supply VDD-VSS 4.75 5.0 5.25
Dot Size 0.54 x 0.54 mm
Dot Pitch 0.58 x 0.58 mm Input Voltage VI - 0.3 VDD
Mounting Hole 118.0 x 105.0 mm
NOTE: VSS = 0 Volt, VDD = 5.0 Volt
ELECTRICAL SPECIFICATIONS ITEM SYMBOL CONDITION STANDARD VALUE UNIT
MIN. TYP. MAX.
Input Voltage VDD L level 0.7VDD VDD
VIO H level 0.3VDD
Supply Current IDD VDD = 5V m A
Recommended LC Driving VDD - V0 0°C 19.0 21.2 .D ta t4 .c Voltage for Normal Temp. 25°C 18.6 19.1 19.6
Version Module 50°C 16.2 16.5 16.8
CCFL Forward Voltage VF 25°C
et CCFL Forward Current IF 25°C 5.0 m A he as at
Document Number: 37280 For Technical Questions, Contact: [email protected] www.vishay.com
Revision 01-Oct-02
