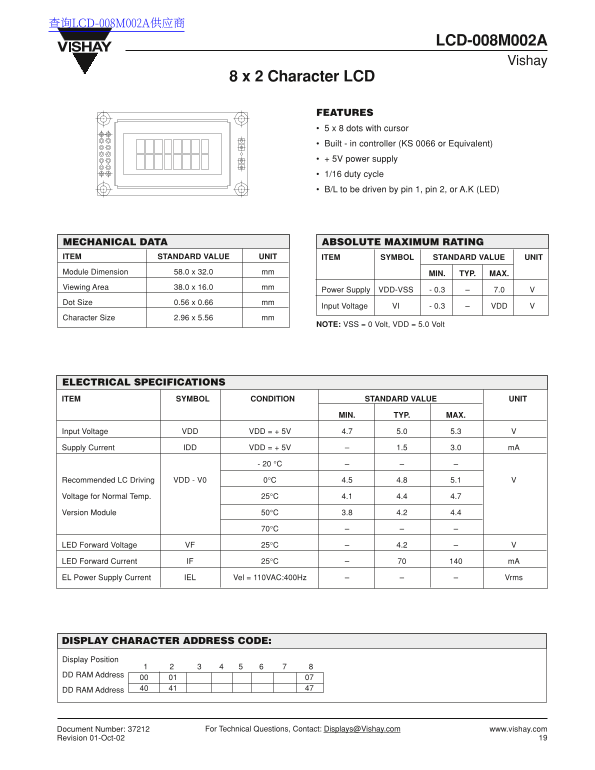

Page 1 Text Content
查询LCD-008M002A供应商
LCD-008M002A
Vishay
8 x 2 Character LCD
FEATURES 5 x 8 dots with cursor Built - in controller (KS 0066 or Equivalent) + 5V power supply 1/16 duty cycle B/L to be driven by pin 1, pin 2, or A.K (LED)
MECHANICAL DATA ABSOLUTE MAXIMUM RATING ITEM STANDARD VALUE UNIT ITEM SYMBOL STANDARD VALUE UNIT Module Dimension 58.0 x 32.0 mm MIN. TYP. MAX. Viewing Area 38.0 x 16.0 mm
Power Supply VDD-VSS - 0.3 7.0
Dot Size 0.56 x 0.66 mm
Input Voltage VI - 0.3 VDD
Character Size 2.96 x 5.56 mm
NOTE: VSS = 0 Volt, VDD = 5.0 Volt
ELECTRICAL SPECIFICATIONS ITEM SYMBOL CONDITION STANDARD VALUE UNIT
MIN. TYP. MAX.
Input Voltage VDD VDD = + 5V 4.7 5.0 5.3
Supply Current IDD VDD = + 5V 1.5 3.0 m A
Recommended LC Driving VDD - V0 0°C 4.5 4.8 5.1
Voltage for Normal Temp. 25°C 4.1 4.4 4.7
Version Module 50°C 3.8 4.2 4.4
LED Forward Voltage VF 25°C 4.2
LED Forward Current IF 25°C m A
EL Power Supply Current IEL Vel = 110VAC:400Hz Vrms
DISPLAY CHARACTER ADDRESS CODE: Display Position DD RAM Address DD RAM Address
Document Number: 37212 For Technical Questions, Contact: [email protected] www.vishay.com
Revision 01-Oct-02
Page Summary Contents For Vishay LCD-008M002A Data Handbook
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 2 |
| File Size | 80.41 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What voltage is required for the power supply?
The device requires a VDD of +5V, with recommended operating ranges between 4.7V and 5.3V.
Which pins handle the data transmission and control signals?
Data lines are DB0 through DB7 (Pins 7-14). Control signals include RS (Pin 4), R/W (Pin 5), and E (Pin 6).
How can I adjust the contrast of the LCD screen?
Contrast adjustment is controlled by connecting to Pin 3 (Vo).
