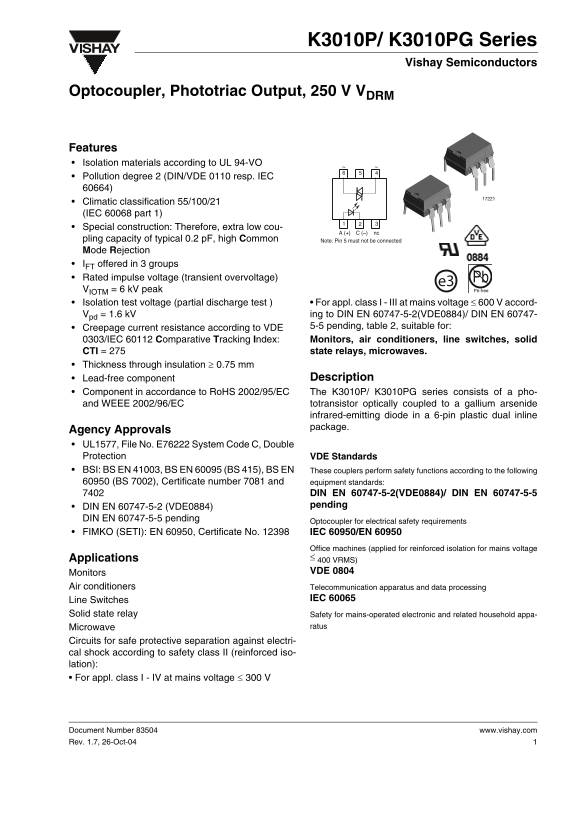

Page 1 Text Content
K3010P/ K3010PG Series
Vishay Semiconductors
Optocoupler, Phototriac Output, 250 V VDRM
Features Isolation materials according to UL 94-VO Pollution degree 2 (DIN/VDE 0110 resp. IEC 60664) Climatic classification 55/100/21 (IEC 60068 part 1) Special construction: Therefore, extra low cou-
(–) nc
pling capacity of typical 0.2 p F, high Common Note: Pin must not be connected
Mode Rejection IFT offered in 3 groups Rated impulse voltage (transient overvoltage) Pb
e3 VIOTM = 6 k V peak Pb-free
Isolation test voltage (partial discharge test ) • For appl. class I - III at mains voltage ≤ 600 V accord- Vpd = 1.6 k V ing to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747- Creepage current resistance according to VDE 5-5 pending, table 2, suitable for: 0303/IEC 60112 Comparative Tracking Index: Monitors, air conditioners, line switches, solid CTI = 275 state relays, microwaves.
Thickness through insulation ≥ 0.75 mm
Lead-free component Description
Component in accordance to Ro HS 2002/95/EC The K3010P/ K3010PG series consists of a pho- and WEEE 2002/96/EC totransistor optically coupled to a gallium arsenide
infrared-emitting diode in a 6-pin plastic dual inline package.
Agency Approvals UL1577, File No. E76222 System Code C, Double Protection VDE Standards BSI: BS EN 41003, BS EN 60095 (BS 415), BS EN These couplers perform safety functions according to the following 60950 (BS 7002), Certificate number 7081 and equipment standards:
DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5 DIN EN 60747-5-2 (VDE0884) pending
DIN EN 60747-5-5 pending
Optocoupler for electrical safety requirements
FIMKO (SETI): EN 60950, Certificate No. 12398 IEC 60950/EN 60950
Office machines (applied for reinforced isolation for mains voltage Applications ≤ 400 VRMS) Monitors VDE 0804
Air conditioners Telecommunication apparatus and data processing
Line Switches IEC 60065
Solid state relay Safety for mains-operated electronic and related household appa-
Microwave ratus
Circuits for safe protective separation against electri- cal shock according to safety class II (reinforced iso- lation): • For appl. class I - IV at mains voltage ≤ 300 V
Document Number 83504 www.vishay.com Rev. 1.7, 26-Oct-04
