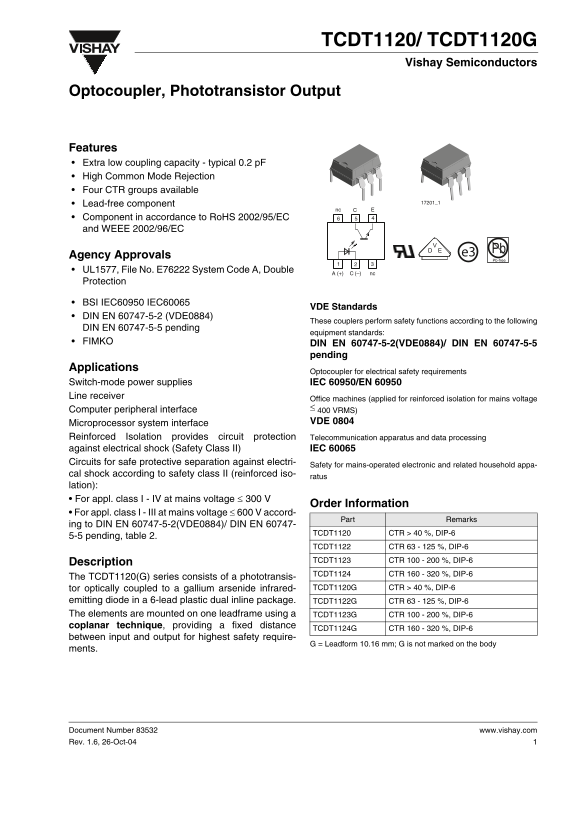

Page 1 Text Content

TCDT1120/ TCDT1120G

Vishay Semiconductors

Optocoupler, Phototransistor Output

Features Extra low coupling capacity - typical 0.2 p F High Common Mode Rejection Four CTR groups available

Lead-free component

Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

e3 Pb

Agency Approvals

Pb-free

UL1577, File No. E76222 System Code A, Double

(–) nc

Protection

BSI IEC60950 IEC60065

VDE Standards

DIN EN 60747-5-2 (VDE0884)

These couplers perform safety functions according to the following

DIN EN 60747-5-5 pending

equipment standards:

FIMKO DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5

pending

Applications

Optocoupler for electrical safety requirements

Switch-mode power supplies IEC 60950/EN 60950 Line receiver

Office machines (applied for reinforced isolation for mains voltage Computer peripheral interface ≤ 400 VRMS) Microprocessor system interface VDE 0804

Reinforced Isolation provides circuit protection Telecommunication apparatus and data processing against electrical shock (Safety Class II) IEC 60065 Circuits for safe protective separation against electri-

Safety for mains-operated electronic and related household appa-

cal shock according to safety class II (reinforced iso-

ratus

lation): • For appl. class I - IV at mains voltage ≤ 300 V

Order Information

• For appl. class I - III at mains voltage ≤ 600 V accord-

Part Remarks

ing to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-

TCDT1120 CTR > 40 %, DIP-6

5-5 pending, table 2.

TCDT1122 CTR 63 - 125 %, DIP-6 Description TCDT1123 CTR 100 - 200 %, DIP-6 TCDT1124 CTR 160 - 320 %, DIP-6

The TCDT1120(G) series consists of a phototransis-

tor optically coupled to a gallium arsenide infrared- TCDT1120G CTR > 40 %, DIP-6

emitting diode in a 6-lead plastic dual inline package. TCDT1122G CTR 63 - 125 %, DIP-6 The elements are mounted on one leadframe using a TCDT1123G CTR 100 - 200 %, DIP-6 coplanar technique, providing a fixed distance

TCDT1124G CTR 160 - 320 %, DIP-6

between input and output for highest safety require-

G = Leadform 10.16 mm; G is not marked on the body

ments.

Document Number 83532 www.vishay.com Rev. 1.6, 26-Oct-04

Page Summary Contents For VISHAY TCDT1120 TCDT1120G Optocoupler, Phototransistor Output User Manual - Data Sheet

Page 1 TCDT1120/ TCDT1120G Vishay Semiconductors Optocoupler, Phototransistor Output Features Extra low coupling capacity - typical 0.2 p F High Common Mode Rejection Four CTR groups available Lead-free comp...
Page 2 TCDT1120/ TCDT1120G Vishay Semiconductors Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Stresses in excess of the absolute Maximum Ratings can cause permanent damage to the device....
Page 3 TCDT1120/ TCDT1120G Vishay Semiconductors Output Parameter Test condition Symbol Min Typ. Max Unit Collector base voltage IC = 100 µA VCBO Collector emitter voltage IC = 1 m A VCEO Emitter collector v...
Page 4 TCDT1120/ TCDT1120G Vishay Semiconductors Coupler Parameter Test condition Symbol Min Typ. Max Unit Rated impulse voltage VIOTM k V Safety temperature Tsi °C Insulation Rated Parameters Parameter Test...
Page 5 TCDT1120/ TCDT1120G Vishay Semiconductors or ar ur re nt to –T ot al ow er is si pa tio Typical Characteristics (Tamb = 25 °C unless otherwise specified) 1.5 VCE=5V 1.4 IC IF=10m A 1.3 tr 0.7 td ts tf...
Page 6 TCDT1120/ TCDT1120G ur re nt Tr an sf er at io lle ct itt tu ra tio lta (V lle ct rr Vishay Semiconductors IF=50m A TCDT1123(G) VCE=5V CNY75A 0.1 IF Forward Current m A VCE Collector Emitter Voltage F...
Page 7 TCDT1120/ TCDT1120G Vishay Semiconductors /t –T ur on /T ur of f T im /t –T ur on /T ur of f T im /t –T ur on /T ur of f T im on of on of on of TCDT1123(G) TCDT1123(G) Non Saturated Saturated Operatio...
Page 8 TCDT1120/ TCDT1120G Vishay Semiconductors Package Dimensions in mm Package Dimensions in mm www.vishay.com Document Number 83532 Rev. 1.6, 26-Oct-04
Page 9 TCDT1120/ TCDT1120G Vishay Semiconductors Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statut...
Page 10 Legal Disclaimer Notice Vishay Notice Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or anyone on its behalf, assumes no responsibi...
