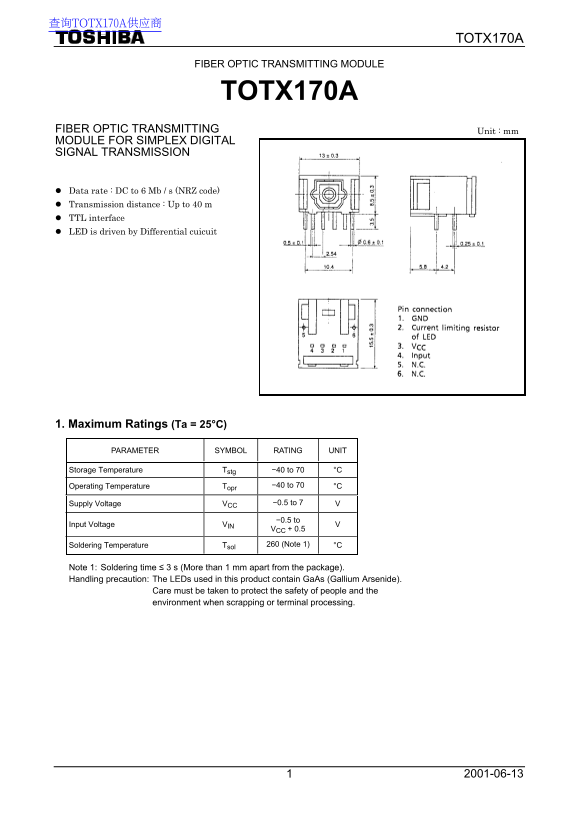

Page 1 Text Content
查询TOTX170A供应商
TOTX170A
FIBER OPTIC TRANSMITTING MODULE
TOTX170A
FIBER OPTIC TRANSMITTING Unit : mm MODULE FOR SIMPLEX DIGITAL SIGNAL TRANSMISSION
Data rate : DC to 6 Mb / s (NRZ code) Transmission distance : Up to 40 m TTL interface LED is driven by Differential cuicuit
1. Maximum Ratings (Ta = 25°C)
PARAMETER SYMBOL RATING UNIT
Storage Temperature Tstg −40 to 70 °C
Operating Temperature Topr −40 to 70 °C
Supply Voltage VCC −0.5 to 7 V
−0.5 to
Input Voltage VIN
VCC + 0.5 V
Soldering Temperature Tsol 260 (Note 1) °C
Note 1: Soldering time ≤ 3 s (More than 1 mm apart from the package). Handling precaution: The LEDs used in this product contain Ga As (Gallium Arsenide).
Care must be taken to protect the safety of people and the environment when scrapping or terminal processing.
