The 2SK2613 is a high-performance N Channel MOS Field Effect Transistor, optimized for demanding power electronics applications such as DC-DC converters and motor drives. This technical documentation provides comprehensive data, including detailed electrical characteristics, maximum ratings, thermal analysis, and switching parameters (e.g., $R_{DS(ON)} = 1.4 \Omega$, $V_{DSS} = 1000 V$). It is essential for electrical engineers and hardware designers who need reliable component specifications to develop robust circuit designs within industrial or consumer power systems.

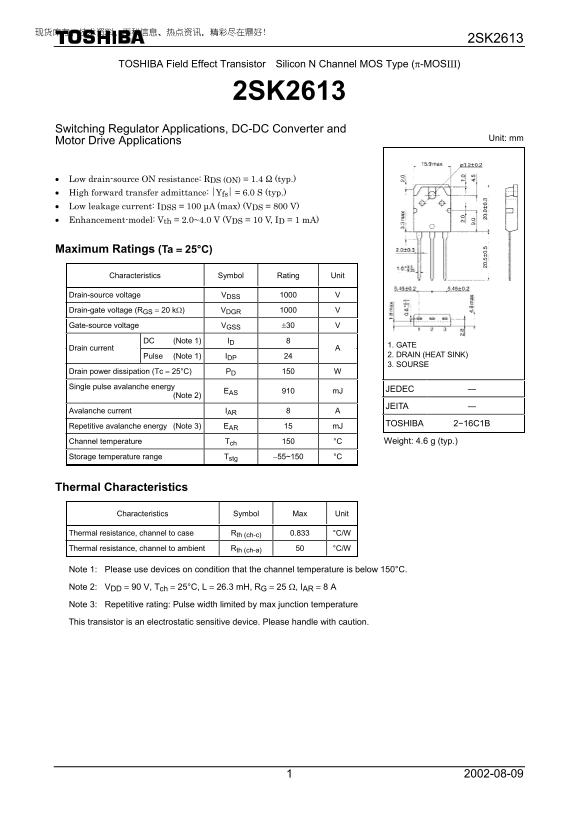

Page 1 Text Content
2SK2613
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (-MOSIII)
2SK2613
Switching Regulator Applications, DC-DC Converter and
Unit: mm
Motor Drive Applications
Low drain-source ON resistance: RDS (ON) = 1.4 Ω (typ.) High forward transfer admittance: Yfs = 6.0 S (typ.) Low leakage current: IDSS = 100 µA (max) (VDS = 800 V) Enhancement-model: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 m A)
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Drain-source voltage VDSS 1000 V Drain-gate voltage (RGS 20 k) VDGR 1000 V Gate-source voltage VGSS 30 V
DC (Note 1) ID 8
1. GATE
Drain current
Pulse (Note 1) IDP 24 2. DRAIN (HEAT SINK) 3. SOURSE
Drain power dissipation (Tc 25°C) PD 150 W Single pulse avalanche energy
JEDEC ―
(Note 2) EAS 910 m J
JEITA ―
Avalanche current IAR 8 A
TOSHIBA 2−16C1B
Repetitive avalanche energy (Note 3) EAR 15 m J
Channel temperature Tch 150 °C Weight: 4.6 g (typ.)
Storage temperature range Tstg 55~150 °C
Thermal Characteristics
Characteristics Symbol Max Unit
Thermal resistance, channel to case Rth (ch-c) 0.833 °C/W Thermal resistance, channel to ambient Rth (ch-a) 50 °C/W
Note 1: Please use devices on condition that the channel temperature is below 150°C.
Note 2: VDD 90 V, Tch 25°C, L 26.3 m H, RG 25 , IAR 8 A
Note 3: Repetitive rating: Pulse width limited by max junction temperature
This transistor is an electrostatic sensitive device. Please handle with caution.
