The TLP197G is a mini flat optocoupler designed as a surface-mount switch, perfectly replacing traditional mechanical relays in electronic applications. This bi-directional component uses an integrated infrared LED and Photo-MOS FET structure, making it ideal for complex systems such as card modems, fax machines, and PBX units. The manual provides comprehensive technical documentation, including detailed electrical specifications, maximum ratings, coupling characteristics, and operational guidelines needed by engineers designing communication or measurement instrumentation equipment.

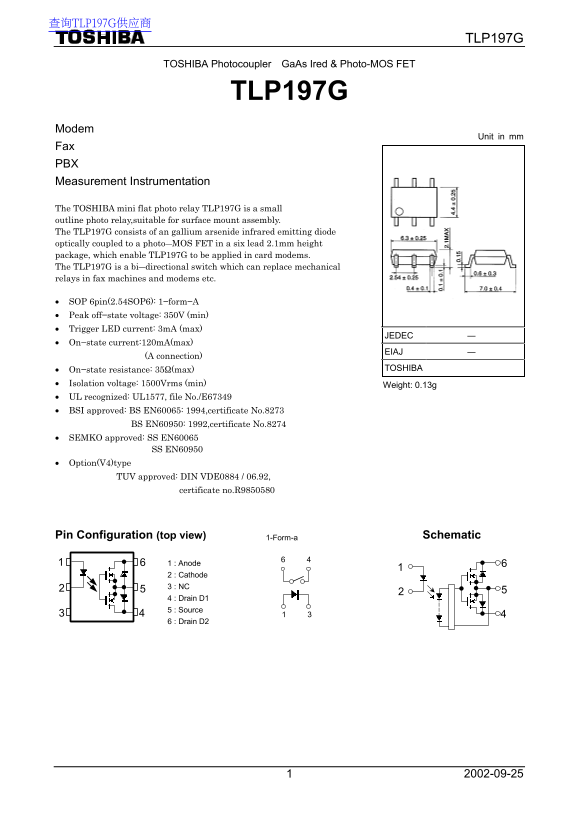

Page 1 Text Content
查询TLP197G供应商
TLP197G
TOSHIBA Photocoupler Ga As Ired & Photo-MOS FET
TLP197G
Modem
Unit in mm
Fax PBX Measurement Instrumentation
The TOSHIBA mini flat photo relay TLP197G is a small outline photo relay,suitable for surface mount assembly. The TLP197G consists of an gallium arsenide infrared emitting diode optically coupled to a photo―MOS FET in a six lead 2.1mm height package, which enable TLP197G to be applied in card modems. The TLP197G is a bi―directional switch which can replace mechanical relays in fax machines and modems etc.
SOP 6pin(2.54SOP6): 1−form−A Peak off−state voltage: 350V (min) Trigger LED current: 3m A (max)
JEDEC ―
On−state current:120m A(max)
EIAJ ―
(A connection)
On−state resistance: 35Ω(max) TOSHIBA
Isolation voltage: 1500Vrms (min) Weight: 0.13g UL recognized: UL1577, file No./E67349 BSI approved: BS EN60065: 1994,certificate No.8273 BS EN60950: 1992,certificate No.8274 SEMKO approved: SS EN60065 SS EN60950 Option(V4)type TUV approved: DIN VDE0884 / 06.92, certificate no.R9850580
Pin Configuration (top view) 1-Form-a Schematic
1 : Anode 2 : Cathode 3 : NC 4 : Drain D1 5 : Source 6 : Drain D2
Page Summary Contents For Toshiba TLP197G User's Manual (Part 3)
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 177.33 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of devices can I use this relay in?
It is suitable for applications like card modems, fax machines, and modems.
How high is its minimum isolation voltage rating?
The device provides a minimum isolation voltage of 1500 Vrms.
Is the TLP197G safe for medical equipment?
No, it is not warranted for use in equipment requiring extraordinarily high quality, such as medical instruments or airplane instruments.
How should I properly dispose of this product?
Follow appropriate regulations; do not dispose of it with other industrial waste or domestic garbage due to toxic GaAs dust/fumes.
