These optocouplers provide crucial signal isolation for surface mount electronics demanding high reliability. Consisting of a phototransistor optically coupled to an infrared LED, the TLP283 and TLP283-4 are ideal components for on-board power supplies, programmable controllers, and general industrial circuits. The manual details comprehensive electrical specifications, including switching times, maximum ratings (up to 2500 Vrms isolation), Current Transfer Ratio (CTR), and application guidelines for electronics designers integrating signal control modules.

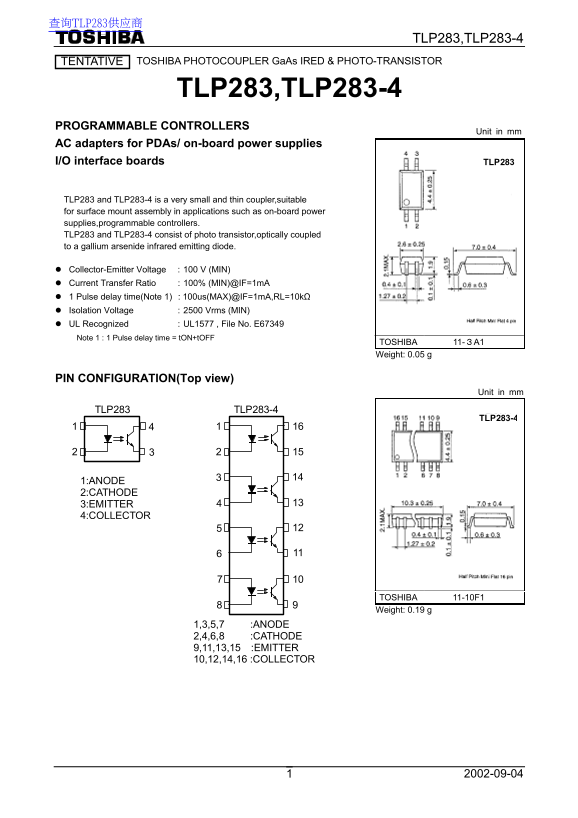

Page 1 Text Content
查询TLP283供应商
TLP283,TLP283-4
TOSHIBA PHOTOCOUPLER Ga As IRED & PHOTO-TRANSISTOR TENTATIVE
TLP283,TLP283-4
PROGRAMMABLE CONTROLLERS
Unit in mm
AC adapters for PDAs/ on-board power supplies
TLP283
I/O interface boards
TLP283 and TLP283-4 is a very small and thin coupler,suitable for surface mount assembly in applications such as on-board power supplies,programmable controllers. TLP283 and TLP283-4 consist of photo transistor,optically coupled to a gallium arsenide infrared emitting diode.
Collector-Emitter Voltage : 100 V (MIN) Current Transfer Ratio : 100% (MIN)@IF=1m A 1 Pulse delay time(Note 1) : 100us(MAX)@IF=1m A,RL=10kΩ Isolation Voltage : 2500 Vrms (MIN) UL Recognized : UL1577 , File No. E67349 Note 1 : 1 Pulse delay time = t ON+t OFF
TOSHIBA 11-３A1 Weight: 0.05 g
PIN CONFIGURATION(Top view)
Unit in mm
TLP283 TLP283-4
TLP283-4
1:ANODE 2:CATHODE 3:EMITTER 4:COLLECTOR
TOSHIBA 11-10F1
Weight: 0.19 g
1,3,5,7 :ANODE 2,4,6,8 :CATHODE 9,11,13,15 :EMITTER 10,12,14,16 :COLLECTOR
Page Summary Contents For Toshiba TOSHIBA TLP283, TLP283-4 User Manual and Specifications (Part 2)
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 4 |
| File Size | 104.45 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of electronics applications are TLP couplers suitable for?
They are suitable for on-board power supplies, programmable controllers, and general electronic devices like computers or office equipment.
What is the minimum required isolation voltage rating?
The specified isolation voltage must be 2500 Vrms at a maximum of one minute.
How should these products be disposed of after use?
Follow appropriate regulations; do not dispose of them with other industrial waste or domestic garbage due to GaAs contents.
Can the TLP couplers be used in highly reliable or critical systems?
No. They are intended for general electronics and should not be used in equipment requiring extraordinarily high quality, such as medical instruments or airplane devices.
