Toshiba TOSHIBA General- Purpose Linear ICs User's Manual and Specifications
Summary
This comprehensive technical guide features integrated circuits essential for advanced electronics design. It provides detailed specifications and application data for operational amplifiers, comparators, intelligent power devices (IPDs), interface, and motor drivers. Users can find solutions for signal processing, including bipolar/CMOS op amps, low-power RF switches, stable oscillators (TCXOs/VCXOs), and specialized power supply ICs, making it critical for engineers developing mixed-signal and analog systems.

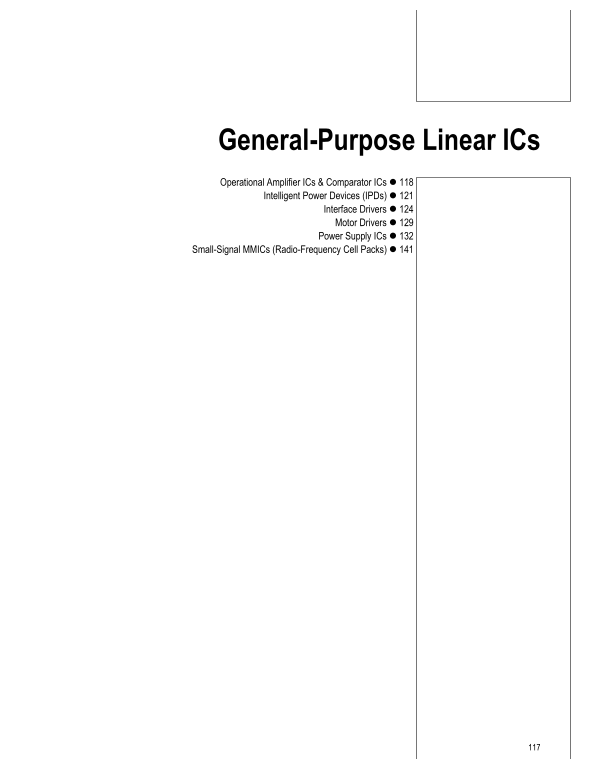

Page 1 Text Content
General-Purpose Linear ICs Operational Amplifier ICs & Comparator ICs 118 Intelligent Power Devices (IPDs) 121
Interface Drivers 124 Motor Drivers 129 Power Supply ICs 132
Small-Signal MMICs (Radio-Frequency Cell Packs) 141
Page Summary Contents For Toshiba TOSHIBA General- Purpose Linear ICs User's Manual and Specifications
Page 1
General-Purpose Linear ICs Operational Amplifier ICs & Comparator ICs 118 Intelligent Power Devices (IPDs) 121 Interface Drivers 124 Motor Drivers 129 Power Supply ICs 132 Small-Signal MMICs (Radi...
Page 2
Operational Amplifier ICs (Op Amp ICs) & Comparator ICs Operational Amplifier ICs (Op Amp ICs) & Comparator ICs (Bipolar, Single-Circuit Type) Pin Configuration (Top View) Part Number Package ...
Page 3
(CMOS, Single-Circuit Type) Part Number Package Marking Functions Features Operating Voltage (V) Pin Configuration 1. TC75S56F SMV Single/dual power supply, 1.8 to 7 TC75S56FU USV TC push-pull output,...
Page 4
Calculation Amp IC Series (Comparator ICs) Characteristics Power Supply Part Number Package Input Offset Voltage Input Bias Current Response Speed Voltage Remarks Equivalent Circuits Input Offset Curr...
Page 5
Intelligent Power Devices (IPDs) 60 V Series Characteristics Operating Operating Junction Protective Functions Diagnostic Functions Power Temperature Supply Part Number Package Features (Channel) Over...
Page 6
60 V Series (Continued) Characteristics Operating Operating Junction Protective Functions Diagnostic Functions Power Temperature Supply Part Number Package Features (Channel) Over- Input/ Outlines Dis...
Page 7
250 V / 500 V Series Characteristics Protective Functions Rating Part Number Package Functions Output Type Features Over- (V/A) Overcurrent Undervoltage temperature 3-phase High-voltage PWM TPD4101K H...
Page 8
Interface Drivers Transistor Arrays (Transistor Arrays/Interface Drivers) Structure Characteristics Power # of Output Output Supply Part Number Package Device Type Input Resistor Recommended Circuits ...
Page 9
Structure Characteristics Power # of Output Output Supply Part Number Package Device Type Input Resistor Recommended Circuits Output Clamp Breakdown Current Voltage Diodes (Ω) Input Voltage (V) Voltag...
Page 10
(DMOS Arrays) Power Supply Part Number Package Device Type Description Voltage (V) TB62003FG/PG SOP20/DIP20 8-bit DMOS driver 8-bit DMOS driver with inverter gate, 35 V / 200 m A 7 TB62004FG/PG SOP20/...
Page 11
LED Driver ICs (LED Panel Drivers) Power Supply Part Number Package Applications Description Voltage (V) TB62702P/PG/F/FG DIP20/SOP20 10-segment displays 10-bit DMOS sink driver (SIPO/latch), 30 V/30 ...
Page 12
Thermal Head Driver ICs Power Supply Part Number Package Applications Description Voltage (V) TD62C805F/FG QFP80 48-bit TPH driver 8-bit parallel input, 6-stage shift register/latch driver (30 V / 100...
Page 13
Motor Drivers Brush Motor Driver ICs (Bridge Driver ICs) Characteristics Maximum Power Supply Part Number Package Description Ratings Voltage (V) IO(A) VO(V) VCC=6 to 18 TA7257P ◆ HSIP7 4.5 25 IOUT = ...
Page 14
Brushless Motor Driver ICs (3-phase Controllers/Drivers) Characteristics Power Supply Maximum Ratings Part Number Package Description Voltage (V) IO (A) VO (V) TA7712P/PG DIP20 0.025 8 General-purpose...
Page 15
Stepping Motor Driver ICs (Bipolar) Characteristics Power Supply Maximum Ratings Part Number Package Description Voltage (V) IO (A) VO (V) VCC=4.5 to 5.5 TA8435H/HQ HZIP25 1.5 40 Pseudo-sine-wave driv...
Page 16
Power Supply ICs Point Regulators (LDO Regulators) Point regulators are so small they can be locally assigned to individuall circuit blocks, making them suitable for applications requiring low dropout...
Page 17
(Dual Output Type) Characteristics Part Number Package Description Output Voltage (V) Output Current (m A) Power Dissipation Internal Connections Ach 2.8 100 TAR8H01K Bch 3.0 150 Ach 2.8 100 1. CONTRO...
Page 18
Series Regulators Electrical Characteristics Output Output Dropout Power Part Number Package Polarity Features Output Input Voltage Bias Current Voltage Equivalent Voltage Current Voltage Dissipation ...
Page 19
Electrical Characteristics Output Output Dropout Power Part Number Package Polarity Features Output Input Voltage Bias Current Voltage Equivalent Voltage Current Voltage Dissipation Max (V) Typ. (m A)...
Page 20
Series Regulators (Continued) Electrical Characteristics Output Output Dropout Power Part Number Package Polarity Features Output Input Voltage Bias Current Voltage Equivalent Voltage Current Voltage ...
Page 21
Electrical Characteristics Output Output Dropout Power Part Number Package Polarity Features Output Input Voltage Bias Current Voltage Equivalent Voltage Current Voltage Dissipation Max (V) Typ. (m A)...
Page 22
Series Regulators (Continued) Electrical Characteristics Output Output Dropout Power Part Number Package Polarity Features Output Input Voltage Bias Current Voltage Equivalent Voltage Current Voltage ...
Page 23
Shunt Regulators Electrical Characteristics Minimum Reference Output Cathode Cathode Part Number Package Polarity Features Reference Cathode Voltage Power Dissipation Equivalent Voltage Voltage Curren...
Page 24
AC-DC Converter ICs Power Supply Voltage Part Number Package Applications Description P-SDIP24-300-1.78 Power factor correction and PWM control, f H = 30 k Hz to 110 k Hz TA1294N/NG/F/FG 7.0 to 14.0 P...
Page 25
Small-Signal MMICs (Radio-Frequency Cell Packs) Wideband Amp ICs Supply Voltage Part Number Package Applications Functions Electrical Characteristics BS tuners, communications equipment, B/W = 1.3 GHz...
Page 26
Radio-Frequency Switches Supply Voltage (V) Part Number Package Functions Applications Electrical Characteristics VDD VC LOSS = 0.4d B (typ.), ISL = 30d B (typ.) General-purpose RF switch, TG2210FT TU...
