Toshiba TLP124 Specifications Manual

Summary

The TLP124 is a mini flat optocoupler designed for reliable signal isolation in surface-mount electronic assemblies. Utilizing an infrared LED and photo-transistor structure, this component provides necessary electrical separation for diverse industrial applications. The comprehensive manual covers all key technical specifications, including intricate current transfer ratio data, detailed isolation voltages (up to 3750Vrms), switching characteristics, and critical handling guidelines, making it essential for engineers developing general electronics—from computing equipment to sophisticated control systems.

📄 Preview ‹ PAGE OF 8 ›

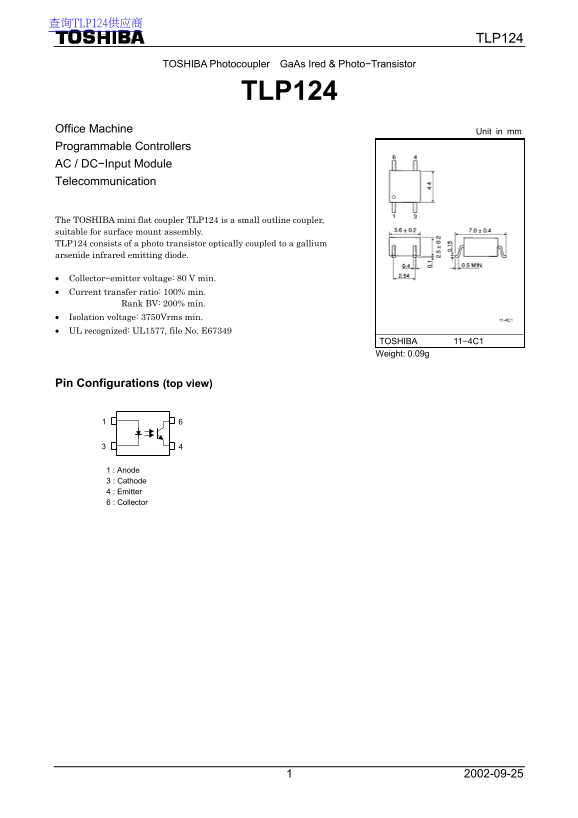

‹ Toshiba TLP124 Specifications Manual - Page 1 ›

Page 1 Text Content

查询TLP124供应商

TLP124

TOSHIBA Photocoupler Ga As Ired & Photo−Transistor

TLP124

Office Machine Unit in mm Programmable Controllers AC / DC−Input Module Telecommunication

The TOSHIBA mini flat coupler TLP124 is a small outline coupler, suitable for surface mount assembly. TLP124 consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode.

Collector−emitter voltage: 80 V min. Current transfer ratio: 100% min.

Rank BV: 200% min.

Isolation voltage: 3750Vrms min. UL recognized: UL1577, file No. E67349

TOSHIBA 11−4C1 Weight: 0.09g

Pin Configurations (top view)

1 : Anode 3 : Cathode 4 : Emitter 6 : Collector

Page Summary Contents For Toshiba TLP124 Specifications Manual

Page 1 查询TLP124供应商 TLP124 TOSHIBA Photocoupler Ga As Ired & Photo−Transistor TLP124 Office Machine Unit in mm Programmable Controllers AC / DC−Input Module Telecommunication The TOSHIBA mini flat coupler...
Page 2 TLP124 Current Transfer Ratio et ec to LE Current Transfer Ratio (min.) Ta = 25°C Ta = 25~75°CClassification Marking Of IF = 1m A IF = 0.5m A IF = 1m A Classification VCE = 0.5V VCE = 1.5V VCE = 0.5V...
Page 3 TLP124 Recommended Operating Conditions et ec to Characteristic Symbol Min. Typ. Max. Unit Supply voltage VCC ― 5 48 V Forward current IF ― 1.6 20 m A Collector current IC ― 1 10 m A Operating tempera...
Page 4 TLP124 Isolation Characteristics (Ta = 25°C) Characteristic Symbol Test Condition Min. Typ. Max. Unit Capacitance (input to output) CS VS = 0, f = 1 MHz ― 0.8 ― p F Isolation resistance RS VS = 500 V,...
Page 5 TLP124 Fo rw ar vo lta ge te pe ra tu re Al lo ab le fo rw ar cu rre nt co ef fic ie nt Ta (m / ° ) 3.2 Pu ls fo rw ar cu rre nt A) IF – Ta PC – Ta Ambient temperature Ta (°C) Ambient temperature Ta ...
Page 6 TLP124 ur re nt tr an sf er ra tio ol le ct or ur re nt (m A) ol le ct or ur re nt (m A) IC – VCE IC – VCE Ta = 25°C Ta = 25°C IF = 1.0m A IF = 1.0m A Collector–emitter voltage VCE (V) Collector–emitt...
Page 7 TLP124 ol le ct or –e itt er at ur at io Sw itc hi ng ti s) vo lta ge E( sa t) V) VCE(sat) – Ta IC – Ta VCE = 1.5V VCE = 0.5V IF = 2m A IF = 1m A Ic = 0.5m A Ambient temperature Ta (℃) 0.05 ol le ct o...
Page 8 TLP124 000707EBCRESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fai...

Manual Details

Brand Toshiba
Pages 8
File Size 160.22 KB
Published June 15, 2026
7 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the functional composition of TLP124?

TLP124 is a photocoupler consisting of a photo-transistor optically coupled to a gallium arsenide infrared emitting diode.

How should TLP124 be wired based on its pin configuration?

The pins are configured as follows: Pin 1 = Anode, Pin 3 = Cathode, Pin 4 = Emitter, and Pin 6 = Collector.

What is the required precaution when handling the component?

Since Gallium arsenide (GaAs) is used, the dust and fumes are toxic. Do not break or cut the product, and follow appropriate waste disposal regulations.
