The TLP206G is a high-reliability optocoupler designed to provide electrical isolation in various circuits, making it an ideal solid-state replacement for mechanical relays. This manual provides comprehensive technical documentation, covering detailed maximum ratings, individual and coupled electrical specifications, and operational graphs across varying temperatures. It is essential reading for engineers and electronics designers building general electronic equipment—such as industrial controls, measurement instruments, or domestic appliances—who require a durable, reliable switching mechanism with high isolation voltage (1500V rms) in their designs.

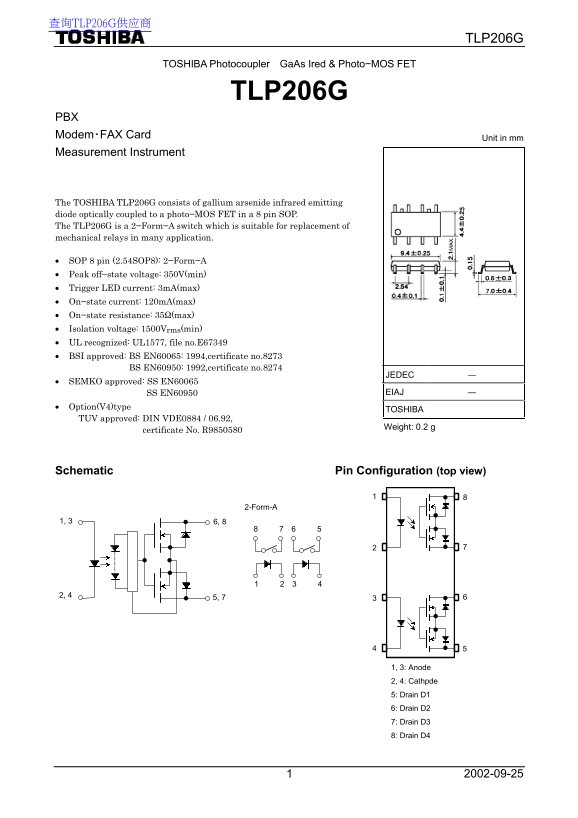

Page 1 Text Content
查询TLP206G供应商
TLP206G
TOSHIBA Photocoupler Ga As Ired & Photo−MOS FET
TLP206G
PBX Modem･FAX Card
Unit in mm
Measurement Instrument
The TOSHIBA TLP206G consists of gallium arsenide infrared emitting diode optically coupled to a photo−MOS FET in a 8 pin SOP. The TLP206G is a 2−Form−A switch which is suitable for replacement of mechanical relays in many application.
SOP 8 pin (2.54SOP8): 2−Form−A Peak off−state voltage: 350V(min) Trigger LED current: 3m A(max) On−state current: 120m A(max) On−state resistance: 35Ω(max) Isolation voltage: 1500Vrms(min) UL recognized: UL1577, file no.E67349 BSI approved: BS EN60065: 1994,certificate no.8273 BS EN60950: 1992,certificate no.8274
JEDEC ―
SEMKO approved: SS EN60065
SS EN60950 EIAJ ―
Option(V4)type
TOSHIBA
TUV approved: DIN VDE0884 / 06.92,
Weight: 0.2 g
certificate No. R9850580
Schematic Pin Configuration (top view)
2-Form-A
1, 3: Anode 2, 4: Cathpde 5: Drain D1 6: Drain D2 7: Drain D3 8: Drain D4
Page Summary Contents For Toshiba TLP206G Specifications (3)
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 150.29 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What function does the TLP206G perform?
It is generally described as a 2-Form-A switch suitable for replacing mechanical relays in various applications.
What is the specified minimum isolation voltage?
The device has an isolation voltage of 1500V (min) rms when tested for one minute at R.H. ≤ 60%.
What are the maximum operating temperature ratings?
The recommended operating temperature range (opr) is from 40°C to 85°C.
Under what conditions are products considered "Unintended Usage"?
It includes usage in atomic energy control instruments, airplane/spaceship instruments, medical devices, or any safety device requiring extraordinarily high reliability.
