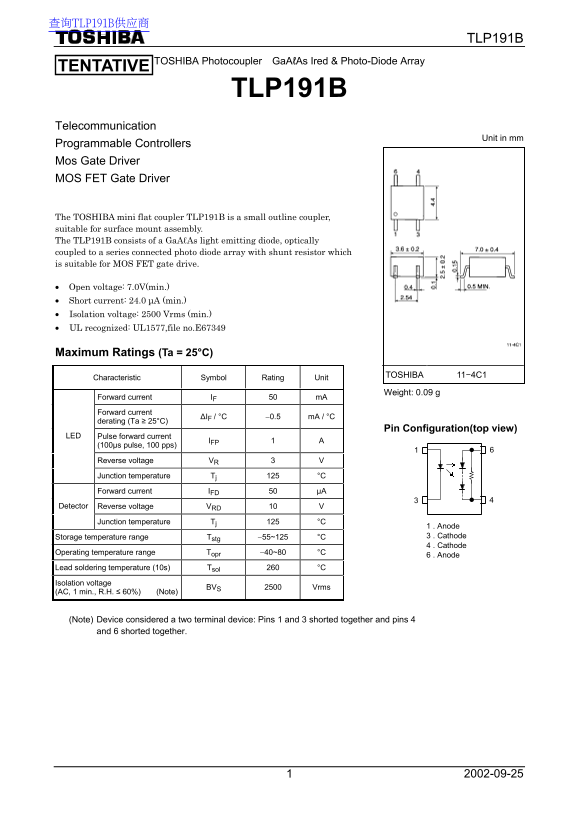

TLP191B
TOSHIBA Photocoupler Ga AℓAs Ired & Photo-Diode Array TENTATIVE
TLP191B
Telecommunication
Unit in mm
Programmable Controllers Mos Gate Driver MOS FET Gate Driver
The TOSHIBA mini flat coupler TLP191B is a small outline coupler, suitable for surface mount assembly. The TLP191B consists of a Ga AℓAs light emitting diode, optically coupled to a series connected photo diode array with shunt resistor which is suitable for MOS FET gate drive.
Open voltage: 7.0V(min.) Short current: 24.0 µA (min.) Isolation voltage: 2500 Vrms (min.) UL recognized: UL1577,file no.E67349
Maximum Ratings (Ta = 25°C)
TOSHIBA 11−4C1
Characteristic Symbol Rating Unit
Weight: 0.09 g
Forward current IF 50 m A Forward current derating (Ta ≥ 25°C) ∆IF / °C 0.5 m A / °C
Pin Configuration(top view)
LED Pulse forward current
IFP 1 A
(100µs pulse, 100 pps) Reverse voltage VR 3 V Junction temperature Tj 125 °C Forward current IFD 50 µA Reverse voltage VRD 10 V Detector Junction temperature Tj 125 °C
1 . Anode Storage temperature range Tstg 55~125 °C 3 . Cathode 4 . Cathode
Operating temperature range Topr 40~80 °C
6 . Anode
Lead soldering temperature (10s) Tsol 260 °C Isolation voltage
BVS 2500 Vrms
(AC, 1 min., R.H. ≤ 60%) (Note)
(Note) Device considered a two terminal device: Pins 1 and 3 shorted together and pins 4 and 6 shorted together.
