The TC7SH34FE is a super high-speed, low power CMOS Digital Integrated Circuit designed as a Non-Invert Buffer IC. This manual provides comprehensive technical documentation for system designers, detailing electrical characteristics, operating voltages (2V–5.5V), propagation delays, and robust performance ratings. It offers essential specifications for engineers developing general electronics applications, including computing equipment and industrial control systems, ensuring optimal design integration with high reliability.

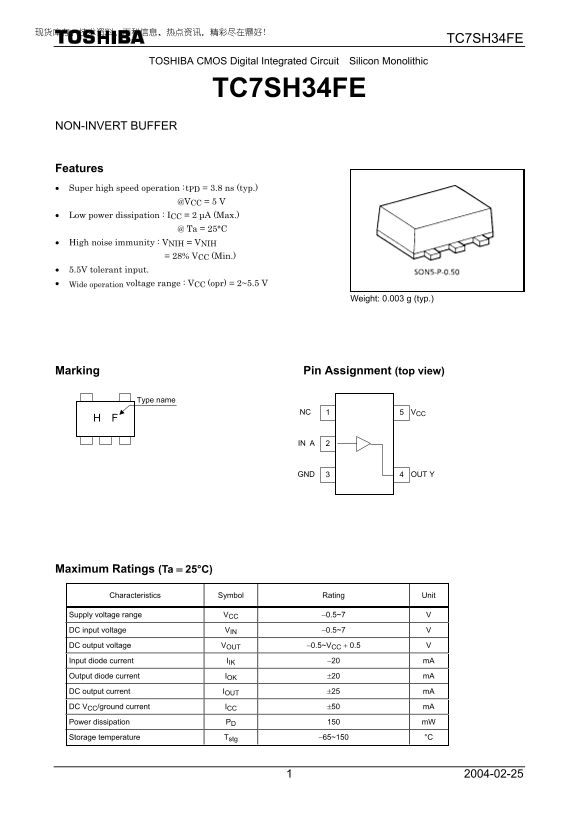

Page 1 Text Content
TC7SH34FE
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SH34FE
NON-INVERT BUFFER
Features • Super high speed operation : t PD = 3.8 ns (typ.) @VCC = 5 V • Low power dissipation : ICC = 2 µA (Max.) @ Ta = 25°C • High noise immunity : VNIH = VNIH = 28% VCC (Min.) • 5.5V tolerant input. • Wide operation voltage range : VCC (opr) = 2~5.5 V
Weight: 0.003 g (typ.)
Marking Pin Assignment (top view)
Type name
H F NC VCC
OUT Y
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Supply voltage range VCC −0.5~7 V
DC input voltage VIN −0.5~7 V
DC output voltage VOUT −0.5~VCC + 0.5 V
Input diode current IIK −20 m A
Output diode current IOK ±20 m A
DC output current IOUT ±25 m A
DC VCC/ground current ICC ±50 m A
Power dissipation PD 150 m W
Storage temperature Tstg −65~150 °C
