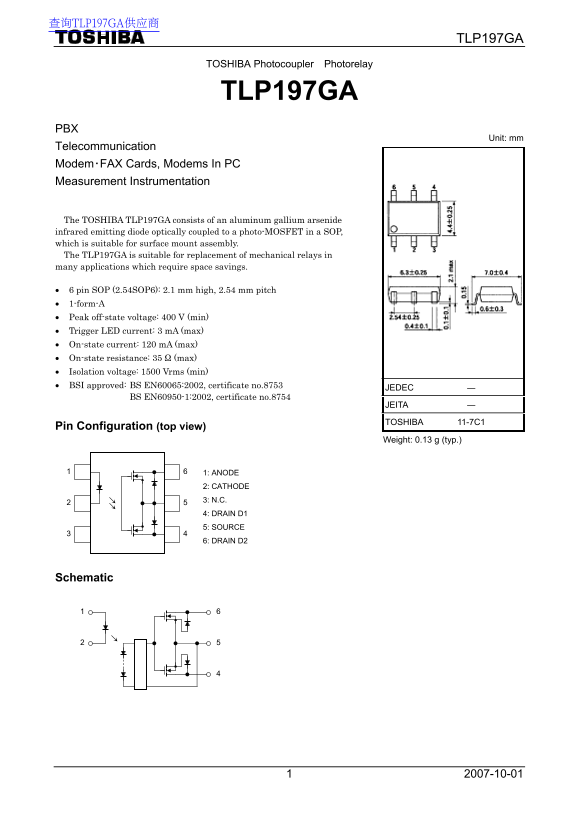

TLP197GA
TOSHIBA Photocoupler Photorelay
TLP197GA
Unit: mm
Telecommunication Modem･FAX Cards, Modems In PC Measurement Instrumentation
The TOSHIBA TLP197GA consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP, which is suitable for surface mount assembly. The TLP197GA is suitable for replacement of mechanical relays in many applications which require space savings.
• 6 pin SOP (2.54SOP6): 2.1 mm high, 2.54 mm pitch • 1-form-A • Peak off-state voltage: 400 V (min) • Trigger LED current: 3 m A (max) • On-state current: 120 m A (max) • On-state resistance: 35 Ω (max) • Isolation voltage: 1500 Vrms (min) • BSI approved: BS EN60065:2002, certificate no.8753
JEDEC ―
BS EN60950-1:2002, certificate no.8754
JEITA ― TOSHIBA 11-7C1
Pin Configuration (top view)
Weight: 0.13 g (typ.)
1: ANODE 2: CATHODE 3: N.C.
4: DRAIN D1 5: SOURCE 6: DRAIN D2
Schematic
