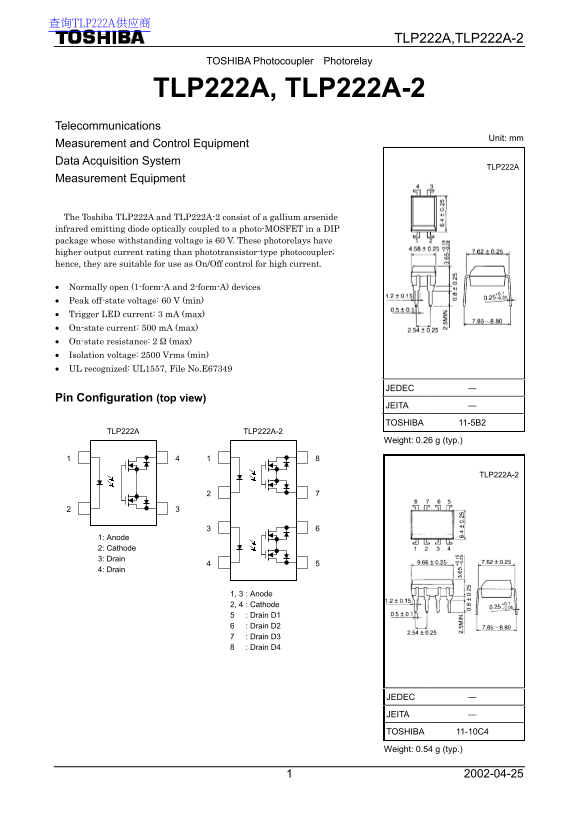

TLP222A,TLP222A-2
TOSHIBA Photocoupler Photorelay
TLP222A, TLP222A-2 Telecommunications
Unit: mm
Measurement and Control Equipment Data Acquisition System
TLP222A
Measurement Equipment
The Toshiba TLP222A and TLP222A-2 consist of a gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a DIP package whose withstanding voltage is 60 V. These photorelays have higher output current rating than phototransistor-type photocoupler; hence, they are suitable for use as On/Off control for high current.
Normally open (1-form-A and 2-form-A) devices Peak off-state voltage: 60 V (min) Trigger LED current: 3 m A (max) On-state current: 500 m A (max) On-state resistance: 2 Ω (max) Isolation voltage: 2500 Vrms (min) UL recognized: UL1557, File No.E67349
JEDEC ―
Pin Configuration (top view)
JEITA ― TOSHIBA 11-5B2
TLP222A TLP222A-2
Weight: 0.26 g (typ.)
TLP222A-2
1: Anode 2: Cathode 3: Drain 4: Drain
1, 3 : Anode 2, 4 : Cathode 5 : Drain D1 6 : Drain D2 7 : Drain D3 8 : Drain D4
JEDEC ― JEITA ― TOSHIBA 11-10C4
Weight: 0.54 g (typ.)
