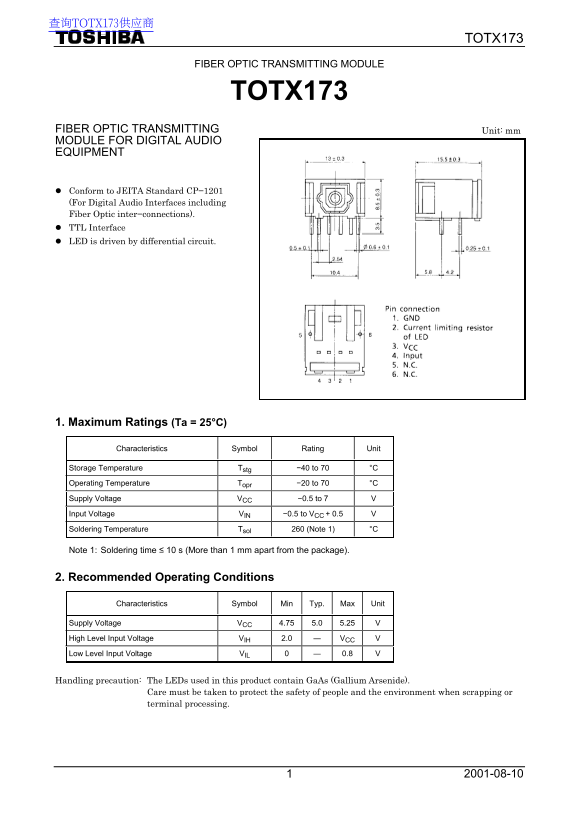

TOTX173
FIBER OPTIC TRANSMITTING MODULE
TOTX173
FIBER OPTIC TRANSMITTING Unit: mm MODULE FOR DIGITAL AUDIO EQUIPMENT
Conform to JEITA Standard CP−1201 (For Digital Audio Interfaces including Fiber Optic inter−connections). TTL Interface LED is driven by differential circuit.
1. Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Storage Temperature Tstg −40 to 70 °C Operating Temperature Topr −20 to 70 °C Supply Voltage VCC −0.5 to 7 V Input Voltage VIN −0.5 to VCC + 0.5 V Soldering Temperature Tsol 260 (Note 1) °C
Note 1: Soldering time ≤ 10 s (More than 1 mm apart from the package).
2. Recommended Operating Conditions
Characteristics Symbol Min Typ. Max Unit
Supply Voltage VCC 4.75 5.0 5.25 High Level Input Voltage VIH 2.0 ― VCC V Low Level Input Voltage VIL 0 ― 0.8 V
Handling precaution: The LEDs used in this product contain Ga As (Gallium Arsenide).
Care must be taken to protect the safety of people and the environment when scrapping or terminal processing.
