This datasheet details the TLP197D Optocoupler, an infrared emitter coupled to a photo-MOSFET in a compact SOP package. Engineered for high isolation voltage and low ON-state resistance, this component is ideal for signal switching applications, including hook switches, dial-pulse modems/facsimiles, and PBX test circuit switching. The manual provides extensive technical specifications, including electrical characteristics, absolute maximum ratings, and recommended operating conditions, making it an essential resource for engineers designing robust general electronics equipment such as office or industrial devices.

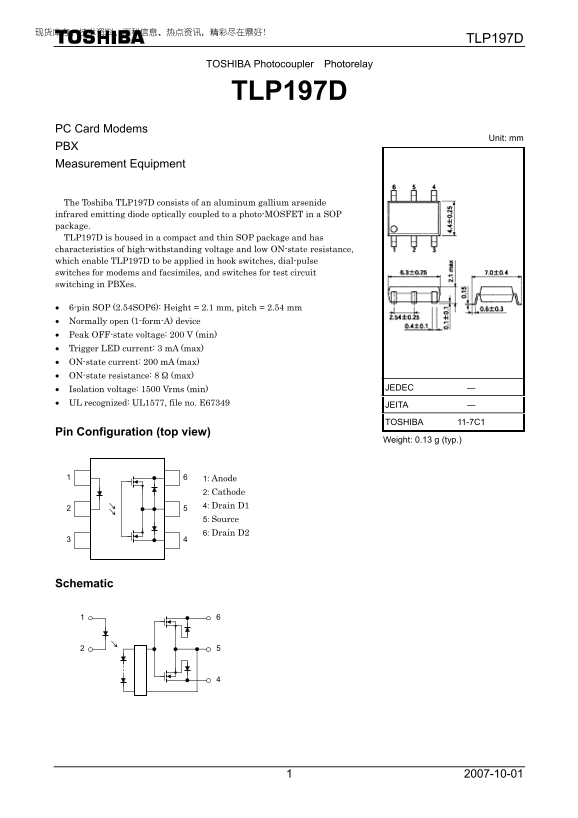

Page 1 Text Content
TLP197D
TOSHIBA Photocoupler Photorelay
TLP197D
PC Card Modems
Unit: mm
PBX Measurement Equipment
The Toshiba TLP197D consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP package. TLP197D is housed in a compact and thin SOP package and has characteristics of high-withstanding voltage and low ON-state resistance, which enable TLP197D to be applied in hook switches, dial-pulse switches for modems and facsimiles, and switches for test circuit switching in PBXes.
• 6-pin SOP (2.54SOP6): Height = 2.1 mm, pitch = 2.54 mm • Normally open (1-form-A) device • Peak OFF-state voltage: 200 V (min) • Trigger LED current: 3 m A (max) • ON-state current: 200 m A (max) • ON-state resistance: 8 Ω (max)
• Isolation voltage: 1500 Vrms (min) JEDEC ―
• UL recognized: UL1577, file no. E67349 JEITA ―
TOSHIBA 11-7C1
Pin Configuration (top view)
Weight: 0.13 g (typ.)
1: Anode 2: Cathode 4: Drain D1
5: Source 6: Drain D2
Schematic
Page Summary Contents For Toshiba TLP197D User's Guide
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 175.72 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum isolation voltage of the TLP197D?
The specified Isolation voltage (BV) is 1500 Vrms (min).
What are the recommended operating temperature limits for this device?
The recommended operating temperature range (T) is -20 to 60 °C.
In what equipment should TLP197D NOT be used?
It must not be used in devices requiring extraordinarily high reliability, such as medical instruments or life support safety devices.
If the device operates continuously under heavy loads, is its reliability guaranteed?
No; continuous operation under heavy loads (high temperature/current/voltage changes) may significantly decrease reliability.
