Toshiba TLP202G User's Guide
Summary
This high-performance optocoupler photorelay is designed for reliable signal isolation in demanding electronic systems. The component features an 8-pin SOP package and provides high-withstanding voltage, making it ideal for applications such as hook relays, dial-pulse circuitry in modems/facsimiles, and PCMCIA card modems. Included documentation covers detailed electrical characteristics, including maximum ratings, switching times, and guaranteed isolation voltages (up to 1500 Vrms). It is suitable for designers working on general electronics, industrial control, office equipment, and personal computing devices.

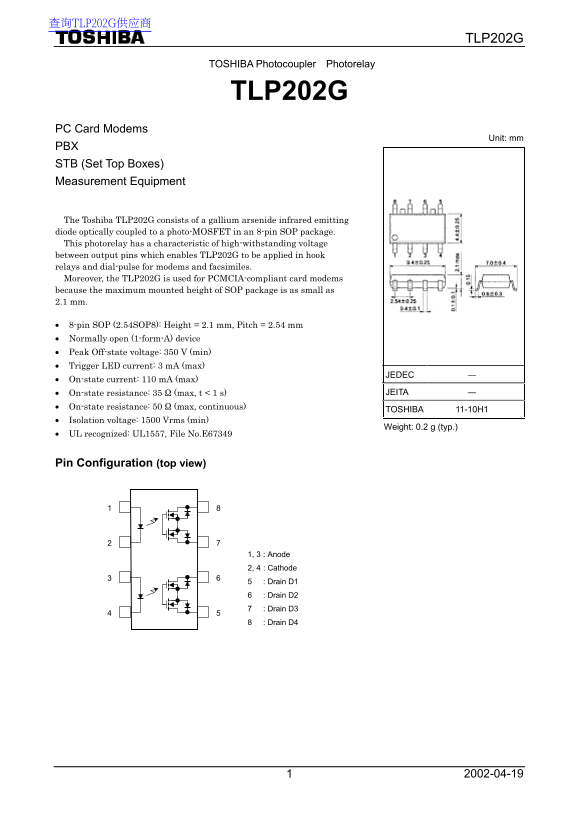

Page 1 Text Content
查询TLP202G供应商
TLP202G
TOSHIBA Photocoupler Photorelay
TLP202G
PC Card Modems
Unit: mm
PBX STB (Set Top Boxes) Measurement Equipment
The Toshiba TLP202G consists of a gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in an 8-pin SOP package. This photorelay has a characteristic of high-withstanding voltage between output pins which enables TLP202G to be applied in hook relays and dial-pulse for modems and facsimiles. Moreover, the TLP202G is used for PCMCIA-compliant card modems because the maximum mounted height of SOP package is as small as 2.1 mm.
8-pin SOP (2.54SOP8): Height = 2.1 mm, Pitch = 2.54 mm Normally open (1-form-A) device Peak Off-state voltage: 350 V (min) Trigger LED current: 3 m A (max)
JEDEC ―
On-state current: 110 m A (max)
On-state resistance: 35 Ω (max, t < 1 s) JEITA ―
On-state resistance: 50 Ω (max, continuous)
TOSHIBA 11-10H1
Isolation voltage: 1500 Vrms (min)
Weight: 0.2 g (typ.)
UL recognized: UL1557, File No.E67349
Pin Configuration (top view)
1, 3 : Anode 2, 4 : Cathode 5 : Drain D1 6 : Drain D2 7 : Drain D3 8 : Drain D4
Page Summary Contents For Toshiba TLP202G User's Guide
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 129.51 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What internal component makes up the TLP202G photorelay?
It consists of a gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET.
Is the TLP202G suitable for modem applications?
Yes, its characteristically high-withstanding voltage enables use in hook relays and dial-pulse for modems and facsimiles.
What is the available operating temperature range?
The operating temperature range (opr) for this device is -40 to 85 °C.
How small must the SOP package be for PCMCIA card use?
The maximum mounted height of the SOP package must be as small as 2.1 mm, making it suitable for PCMCIA-compliant card modems.
