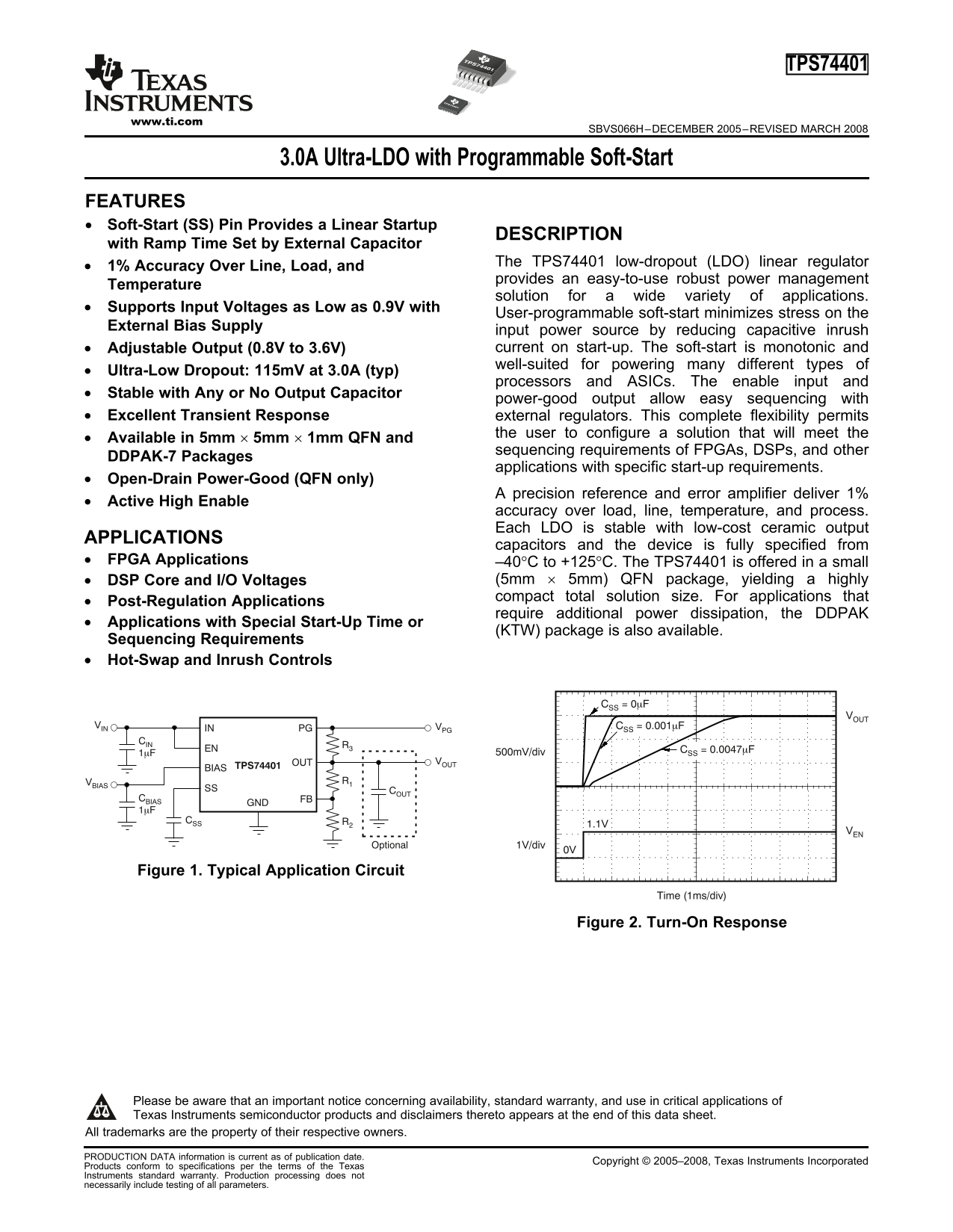

Texas Instruments TPS74401 User Guide and Technical Specifications
Summary
The TPS74401 is a highly advanced, ultra-low dropout LDO linear regulator designed for complex digital applications that demand precise power management and controlled startup sequencing. This manual details its capabilities, including programmable soft-start features to minimize inrush current and an open-drain power-good output for easy system sequencing. Ideal for FPGAs, DSPs, and other high-performance integrated circuits across demanding temperature ranges (-40°C to +125°C).
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 27 |
| File Size | 860.15 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I program the adjustable output voltage?
The output voltages are available through innovative factory EEPROM programming, typically in 50mV increments (from 0.9V to 1.5V) or 100mV increments (from 1.5V to 3.6V).
What is the device's dropout voltage and maximum current?
The unit has an ultra-low dropout voltage of 115mV at a nominal load current of 3.0A (typ).
Is this regulator suitable for critical applications like military use?
No; it is only intended for standard non-critical uses. TI products are neither designed nor intended for use in military/aerospace environments unless specifically designated as such.
What special care should be taken when handling the integrated circuit?
Since it can be damaged by Electrostatic Discharge (ESD), Texas Instruments recommends that all integrated circuits be handled with appropriate precautions.
