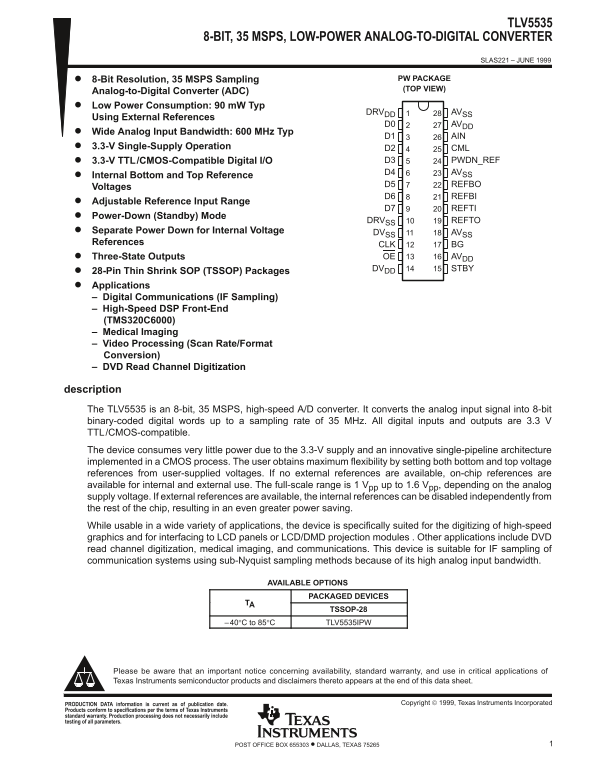

Texas Instruments TLV5535 Specifications and User Guide
Summary
This low-power 8-bit Analog-to-Digital Converter is designed for high-speed signal acquisition up to 35 MSPS. Operating on a single 3.3V supply, it converts analog signals into digital data while offering flexible external or internal voltage referencing. The comprehensive manual details its functional architecture, pin assignments, and operation guidelines. It is ideal for professional applications such as medical imaging, video processing, high-speed communications IF sampling, and specialized DSP front-end digitizing needs.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 35 |
| File Size | 723.65 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the core resolution and maximum sampling speed of this ADC?
It is an 8-bit Analog-to-Digital Converter with a maximum sampling rate of 35 MSPS.
How does the device manage reference voltages?
Users can supply both bottom (REFBI) and top (REFTI) external voltage references, or utilize internal on-chip references if external ones aren't available.
Is this ADC compatible with standard digital logic levels?
Yes, all digital inputs and outputs are 3.3 V TTL/CMOS-compatible operating at a single supply voltage.
What terminal should I use to achieve low power consumption when idle?
The PWDN_REF terminal controls the Power-Down (Standby) mode, allowing for reduced power usage.
