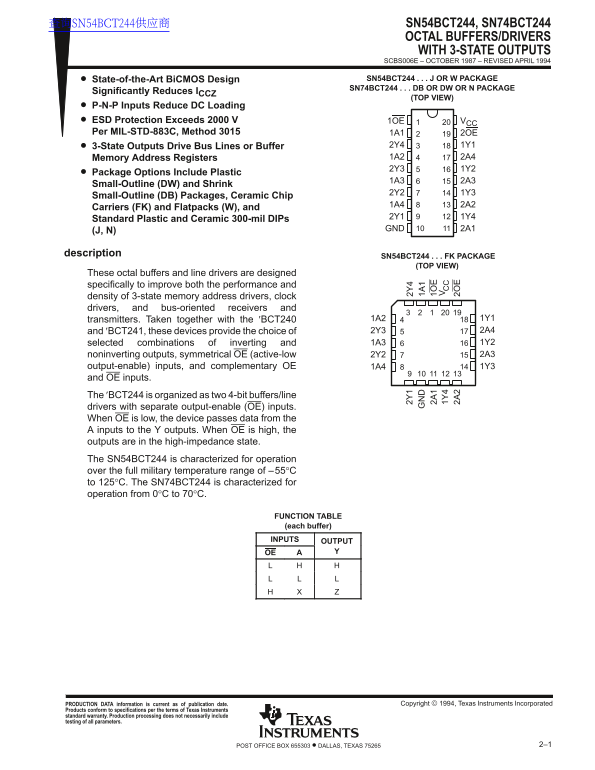

查询SN54BCT244供应商 SN54BCT244, SN74BCT244
OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS SCBS006E – OCTOBER 1987 – REVISED APRIL 1994 State-of-the-Art Bi CMOS Design SN54BCT244 J OR W PACKAGE
SN74BCT244 DB OR DW OR N PACKAGE
Significantly Reduces ICCZ
(TOP VIEW)
P-N-P Inputs Reduce DC Loading ESD Protection Exceeds 2000 V 1OE VCC Per MIL-STD-883C, Method 3015 1A1 2OE
3-State Outputs Drive Bus Lines or Buffer 2Y4 1Y1 Memory Address Registers 1A2 2A4 2Y3 1Y2
Package Options Include Plastic
Small-Outline (DW) and Shrink
Small-Outline (DB) Packages, Ceramic Chip
Carriers (FK) and Flatpacks (W), and
Standard Plastic and Ceramic 300-mil DIPs
(J, N) GND 2A1
description
SN54BCT244 FK PACKAGE
(TOP VIEW)
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and
transmitters. Taken together with the ′BCT240 1A2 1Y1 and ′BCT241, these devices provide the choice of 2Y3 2A4 selected combinations of inverting and 1A3 1Y2 noninverting outputs, symmetrical OE (active-low 2Y2 2A3
output-enable) inputs, and complementary OE 1A4 1Y3 and OE inputs. The ′BCT244 is organized as two 4-bit buffers/line drivers with separate output-enable (OE) inputs.
When OE is low, the device passes data from the
A inputs to the Y outputs. When OE is high, the
outputs are in the high-impedance state.
1Y The SN54BCT244 is characterized for operation 2A 2O
over the full military temperature range of –55°C to 125°C. The SN74BCT244 is characterized for operation from 0°C to 70°C.
FUNCTION TABLE (each buffer) INPUTS OUTPUT OE
PRODUCTION DATA information is current as of publication date. Copyright 1994, Texas Instruments Incorporated
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
2–1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
