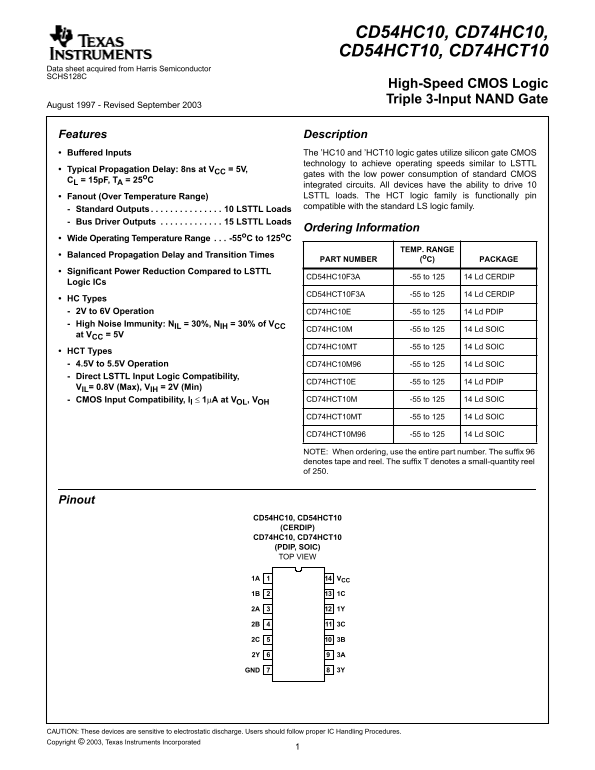

Texas Instruments CD54HC10, CD74HC10, CD54HCT10, CD74HCT10 User Manual and Technical Specifications
Summary
This comprehensive datasheet for high-speed CMOS Logic ICs (Triple 3-Input NAND Gate) provides crucial technical details for hardware designers and engineers. It covers multiple logic families (HC/HCT), operating specifications across extreme temperature ranges (-55°C to 125°C), and detailed electrical parameters, including input/output voltages, timing characteristics, and package options. Ideal for developers requiring reliable, low-power switching components in robust digital circuit designs.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 13 |
| File Size | 439.79 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What operating voltage range do I need for HC and HCT types?
HC types operate from 2V to 6V, while HCT types are designed for 4.5V to 5.5V operation.
How fast are these logic gates?
The typical propagation delay is 8ns at V_CC = 5V, offering high-speed performance.
What load capacity can the device handle?
High-level inputs can drive up to 10 LSTTL Loads, and bus driver outputs support 15 LSTTL Loads.
Are these components safe for delicate handling?
Yes, these devices are sensitive to electrostatic discharge (ESD), requiring users to follow proper IC Handling Procedures.
