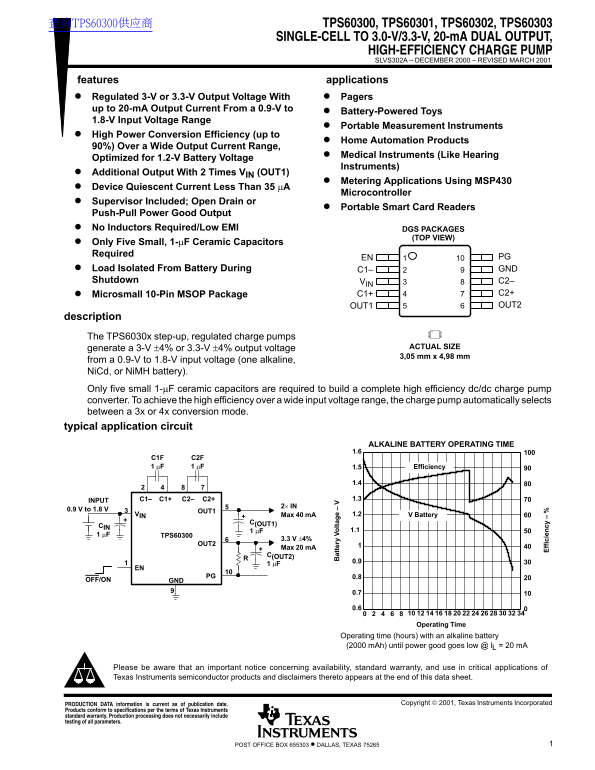

查询TPS60300供应商 TPS60300, TPS60301, TPS60302, TPS60303

SINGLE-CELL TO 3.0-V/3.3-V, 20-m A DUAL OUTPUT,

HIGH-EFFICIENCY CHARGE PUMP SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

features applications Regulated 3-V or 3.3-V Output Voltage With Pagers up to 20-m A Output Current From a 0.9-V to

Battery-Powered Toys

1.8-V Input Voltage Range

Portable Measurement Instruments

High Power Conversion Efficiency (up to

Home Automation Products

90%) Over a Wide Output Current Range,

Medical Instruments (Like Hearing

Optimized for 1.2-V Battery Voltage

Instruments)

Additional Output With 2 Times VIN (OUT1)

Metering Applications Using MSP430

Device Quiescent Current Less Than 35 µA

Microcontroller

Supervisor Included; Open Drain or

Portable Smart Card Readers

Push-Pull Power Good Output No Inductors Required/Low EMI DGS PACKAGES

(TOP VIEW)

Only Five Small, 1-µF Ceramic Capacitors Required

EN PG

Load Isolated From Battery During C1– GND Shutdown VIN C2–

Microsmall 10-Pin MSOP Package C1+ C2+ OUT1 OUT2

description

The TPS6030x step-up, regulated charge pumps at te ry lt ag

generate a 3-V ±4% or 3.3-V ±4% output voltage ACTUAL SIZE 3,05 mm x 4,98 mm

from a 0.9-V to 1.8-V input voltage (one alkaline, Ni Cd, or Ni MH battery). Only five small 1-µF ceramic capacitors are required to build a complete high efficiency dc/dc charge pump converter. To achieve the high efficiency over a wide input voltage range, the charge pump automatically selects between a 3x or 4x conversion mode. typical application circuit

ALKALINE BATTERY OPERATING TIME 1.6

C1F C2F 1 µF 1 µF 1.5 Efficiency

INPUT

2× IN

0.9 V to 1.8 V OUT1

VIN Max 40 m A 1.2 V Battery

C(OUT1)

1 µF TPS60300

OUT2 ff ic ie cy Max 20 m A

C(OUT2)

PG 0.8

OFF/ON GND

Operating Time

Operating time (hours) with an alkaline battery (2000 m Ah) until power good goes low @ l L = 20 m A

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Copyright  2001, Texas Instruments Incorporated

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
