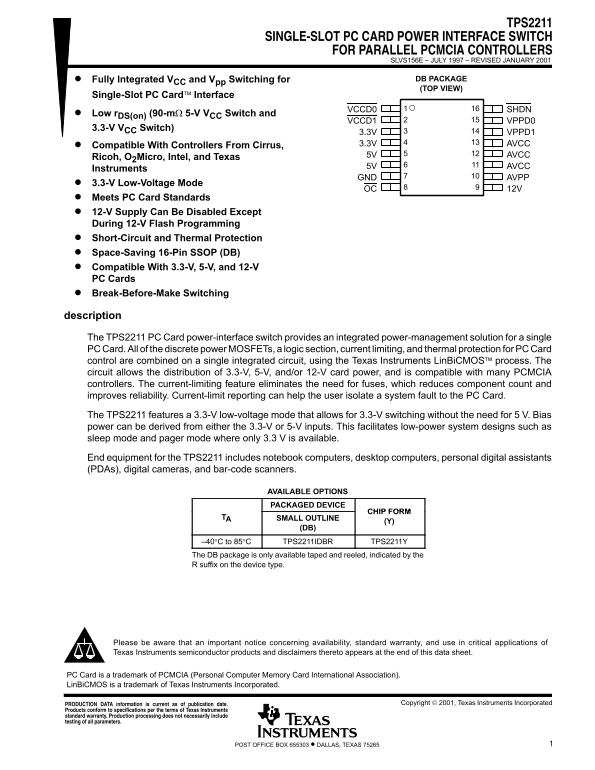

TPS2211

SINGLE-SLOT PC CARD POWER INTERFACE SWITCH

FOR PARALLEL PCMCIA CONTROLLERS

SLVS156E – JULY 1997 – REVISED JANUARY 2001

Fully Integrated VCC and Vpp Switching for DB PACKAGE (TOP VIEW)

Single-Slot PC Card Interface

VCCD0 SHDN

Low r DS(on) (90-mΩ 5-V VCC Switch and

VCCD1 VPPD0

3.3-V VCC Switch)

3.3V VPPD1 Compatible With Controllers From Cirrus, 3.3V AVCC Ricoh, O2Micro, Intel, and Texas 5V AVCC 5V AVCC

Instruments

GND AVPP

3.3-V Low-Voltage Mode

OC 12V

Meets PC Card Standards 12-V Supply Can Be Disabled Except During 12-V Flash Programming Short-Circuit and Thermal Protection Space-Saving 16-Pin SSOP (DB) Compatible With 3.3-V, 5-V, and 12-V PC Cards Break-Before-Make Switching

description

The TPS2211 PC Card power-interface switch provides an integrated power-management solution for a single PC Card. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit, using the Texas Instruments Lin Bi CMOS process. The circuit allows the distribution of 3.3-V, 5-V, and/or 12-V card power, and is compatible with many PCMCIA controllers. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability. Current-limit reporting can help the user isolate a system fault to the PC Card. The TPS2211 features a 3.3-V low-voltage mode that allows for 3.3-V switching without the need for 5 V. Bias power can be derived from either the 3.3-V or 5-V inputs. This facilitates low-power system designs such as sleep mode and pager mode where only 3.3 V is available. End equipment for the TPS2211 includes notebook computers, desktop computers, personal digital assistants (PDAs), digital cameras, and bar-code scanners.

AVAILABLE OPTIONS PACKAGED DEVICE

CHIP FORM

TA SMALL OUTLINE

–40°C to 85°C TPS2211IDBR TPS2211Y The DB package is only available taped and reeled, indicated by the R suffix on the device type.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PC Card is a trademark of PCMCIA (Personal Computer Memory Card International Association). Lin Bi CMOS is a trademark of Texas Instruments Incorporated.

Copyright  2001, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
